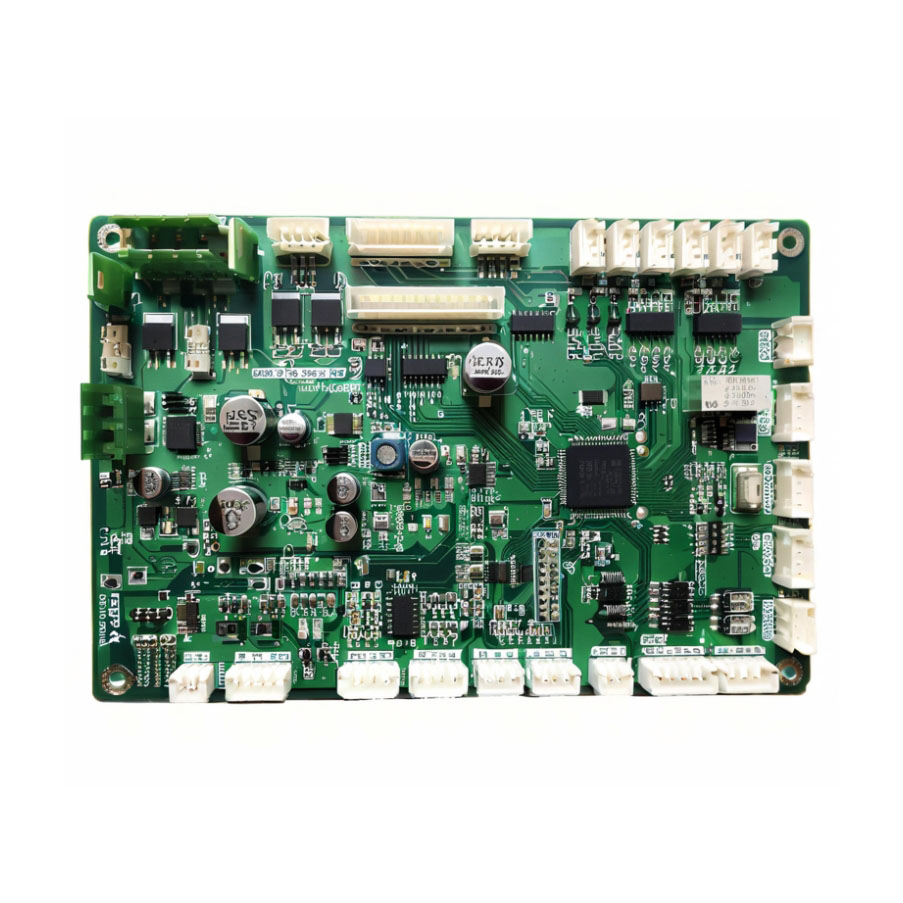

One stop Multilayer PCB Assembly सेवाएं PCB Assembly Manufacturer Electronic Product Assembly Supplier

मूल्य और मात्रा

• न्यूनतम आदेश मात्रा 1
• मूल्य या मूल्य सीमा आईएनआर

उत्पाद की विशेषताएं

• इलेक्ट्रिकल घटक SMT (Surface Mount), THT (Through-hole), BGA, QFN, SMD, Connector, etc.
• वोल्टेज एंड्योरेंस 3kV/mm
• सेंसर स्विच As per design/specification
• प्रतिबाधा Controlled impedance available (5%)
• न्यूनतम। लाइन स्पेसिंग 0.075mm
• ज्वाला प्रतिरोध स्तर UL 94 V-0
• न्यूनतम। लाइन की चौड़ाई 0.075mm
• पैनल का आकार Custom up to 600mm x 600mm
• प्रॉडक्ट टाइप Multilayer PCB Assembly
• छेद का आकार Min 0.2mm
• बोर्ड की मोटाई 1.6mm (custom option available)
• तांबे की मोटाई 1oz, 2oz, custom available
• इन्सुलेशन प्रतिरोध >10^12 (normal conditions)

• Component Sourcing Turnkey, partial, consigned, per requirement
• Placement Accuracy 0.05mm
• Mounting Types Supported SMT, DIP, Mixed assembly
• Maximum Component Height Up to 25mm
• PCB Standard Compliance IPC-A-610, RoHS compliant
• File Formats Accepted Gerber, BOM, Pick-and-Place, Centroid, ODB++
• Application Areas Consumer Electronics, Automotive, Industrial Controls, Medical Devices, Telecommunication
• Assembly Service Type One-stop solution including PCB fabrication and component assembly
• Design Support DFM (Design for Manufacturability), DFA, Engineering support
• Minimum Order Quantity 1 piece (prototype); bulk options available
• Lead Time Rapid prototype 3-7 days, standard 7-15 days
• ESD Protection Integrated, ESD safe handling throughout assembly
• Packaging Anti-static, vacuum packing, customized
