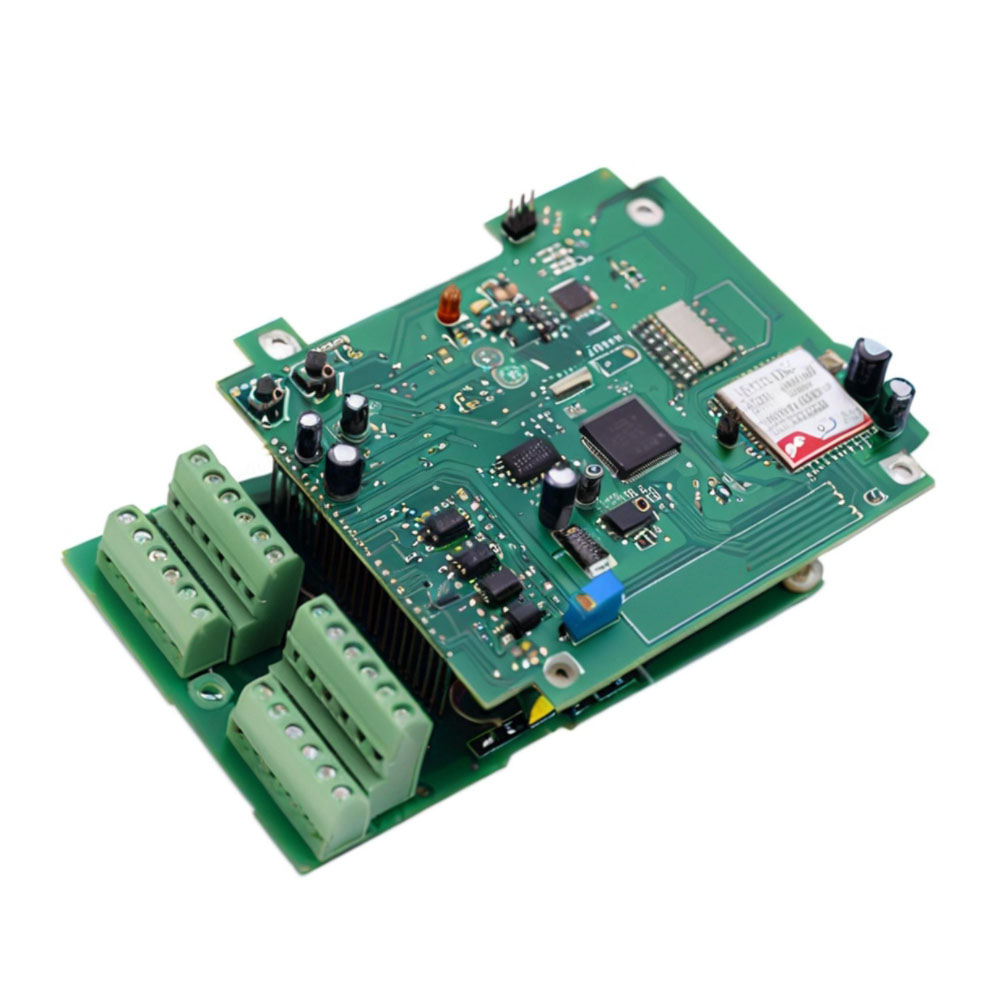

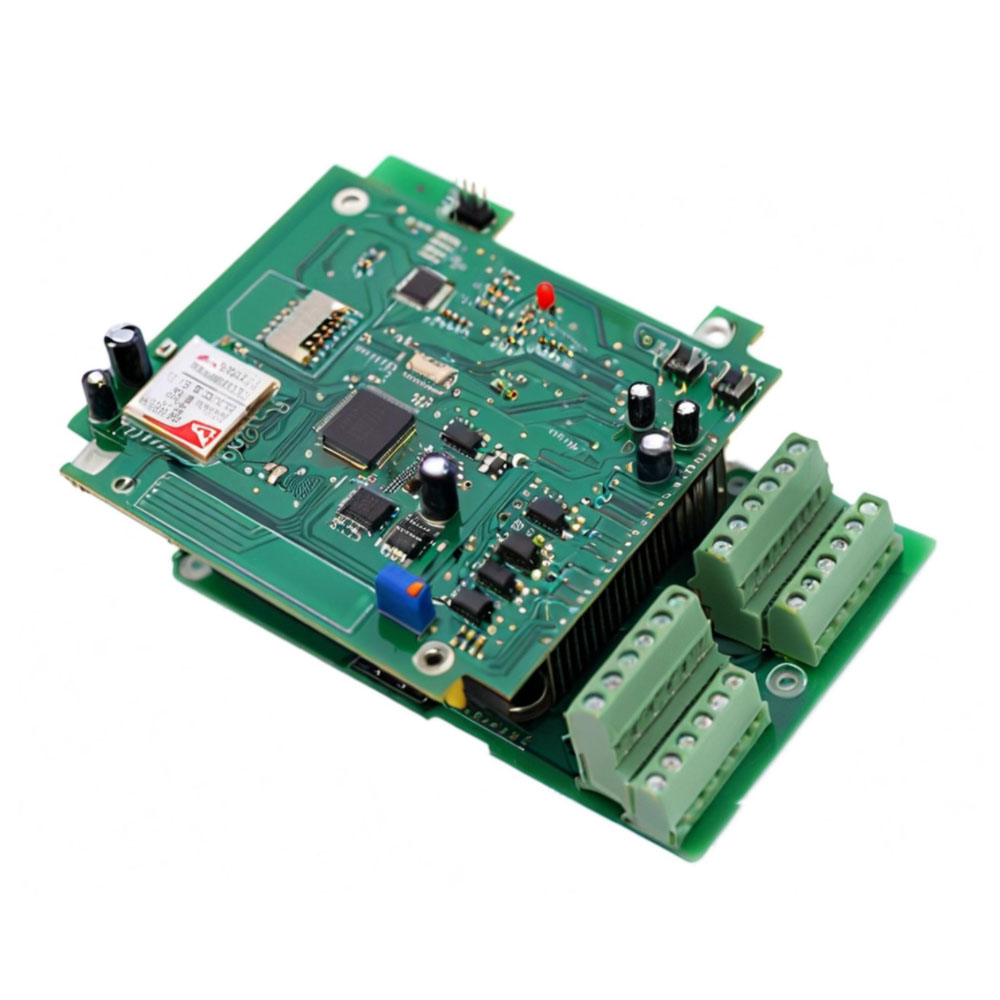

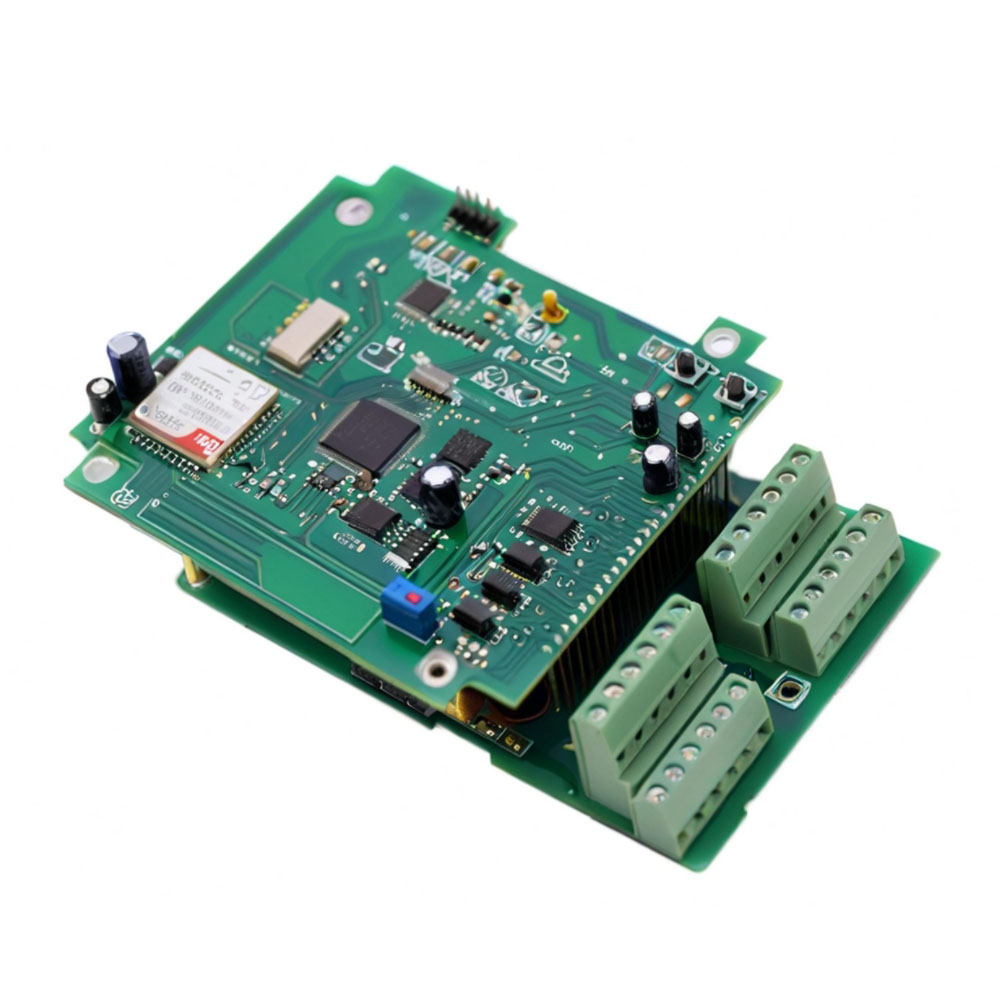

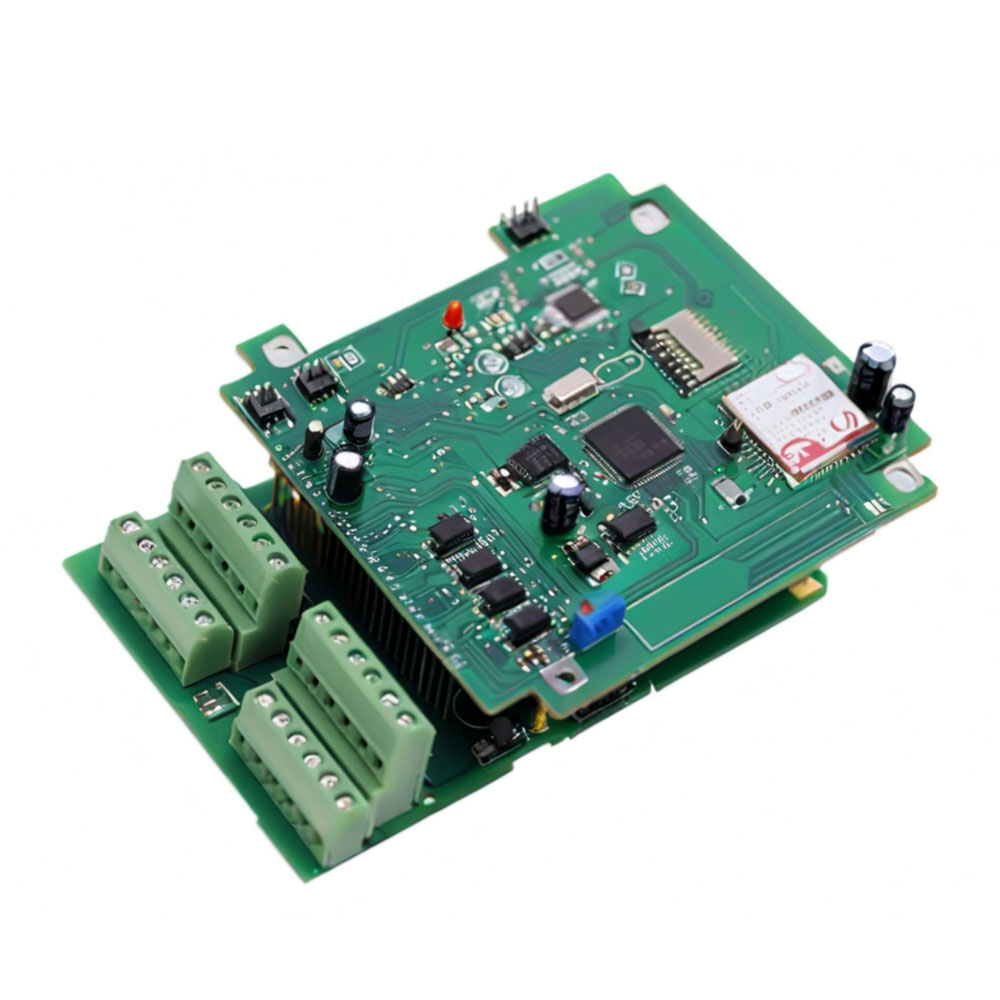

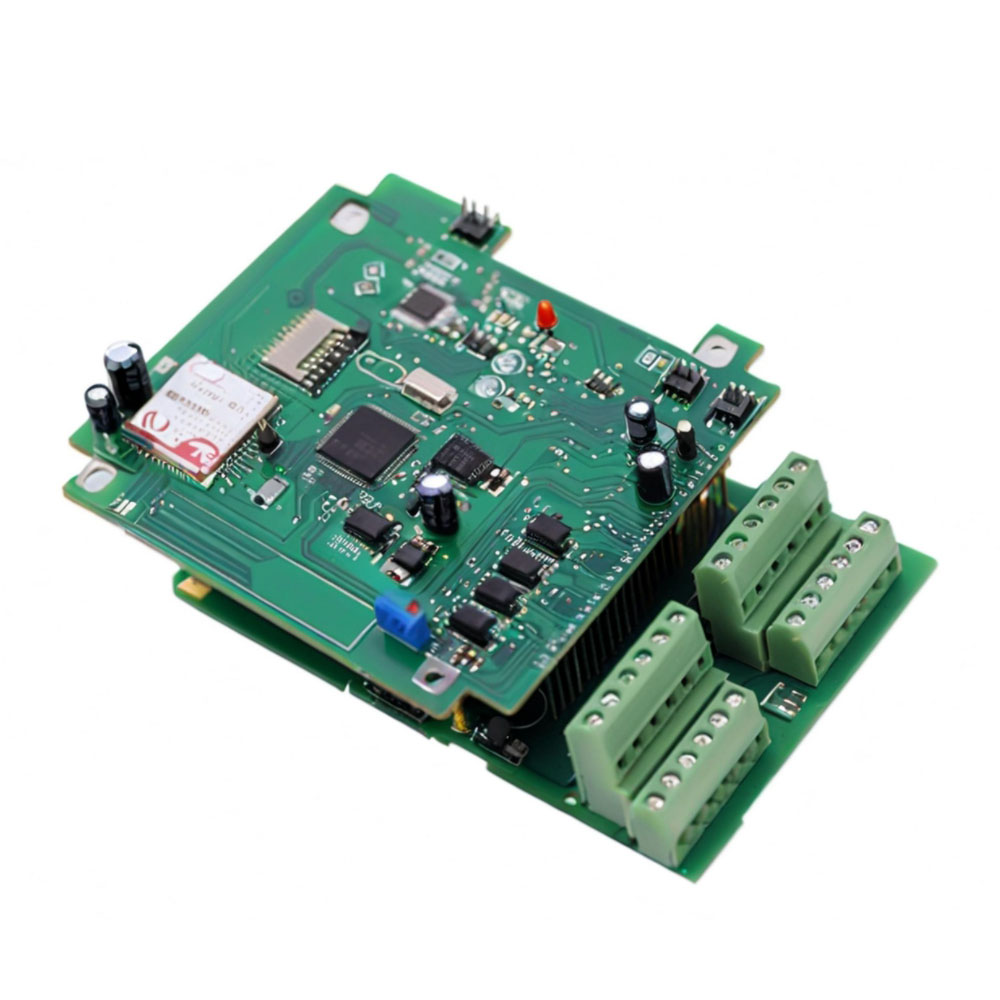

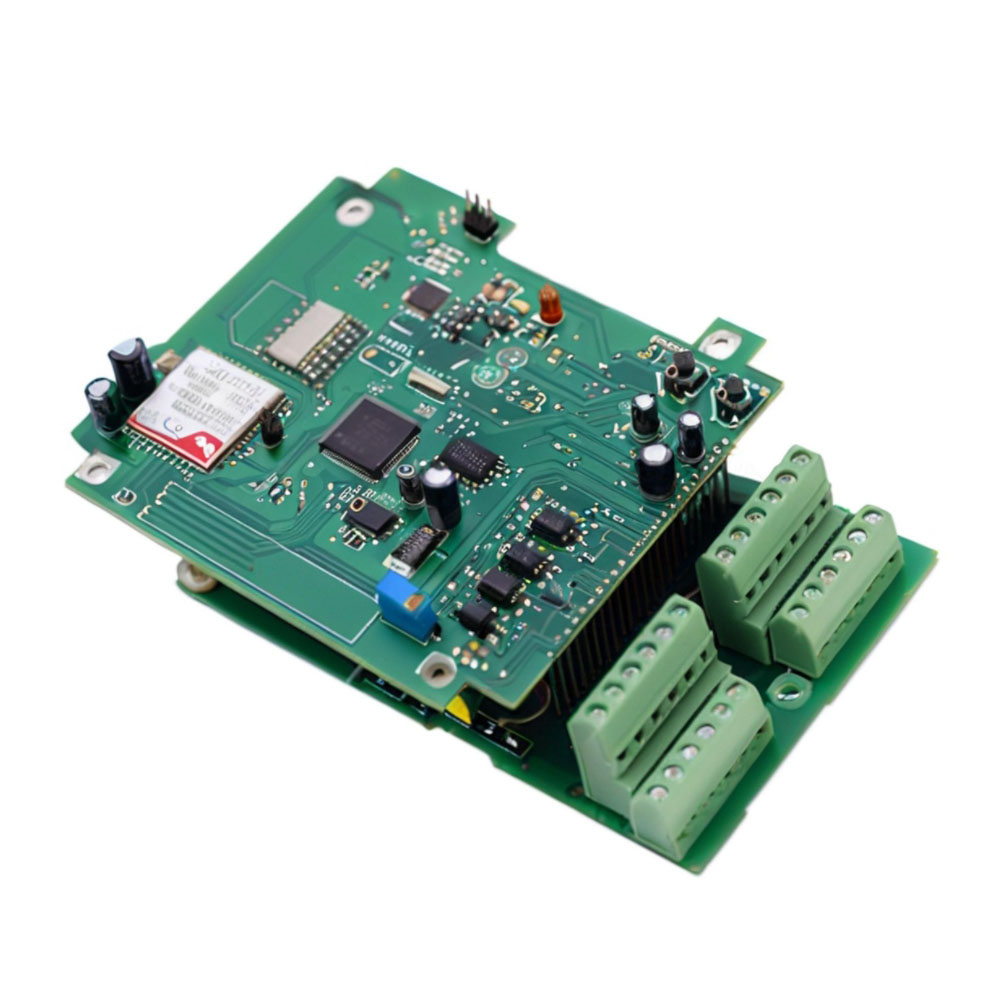

China one stop Custom Pcb Assembly board PCB Manufacturing and Assembly Ship navigation PCBA Circuit Board supplier

China one stop Custom Pcb Assembly board PCB Manufacturing and Assembly Ship navigation PCBA Circuit Board supplier

Get a Price/Quote

Product Details:

Hole Size 0.2 mm Min.
Board Type Rigid
Flame Resistance Level UL94-V0
Min. Line Spacing 0.1 mm
Silkscreen White
Test Flying Probe, E-Test
Soldermask Green
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

China one stop Custom Pcb Assembly board PCB Manufacturing and Assembly Ship navigation PCBA Circuit Board supplier Price And Quantity

Minimum Order Quantity 1 Piece
Price Or Price Range INR

Assembly Service One-Stop Turnkey Service
Application Ship Navigation Systems
OEM/ODM Service Available
Packing Anti-static Packaging
Quality Control 100% AOI, X-ray Inspection
Connector Types Custom
RoHS Compliance Yes
Lead Time 7-15 Working Days
Component Sourcing Full or Partial Sourcing

China one stop Custom Pcb Assembly board PCB Manufacturing and Assembly Ship navigation PCBA Circuit Board supplier Product Specifications

Silkscreen White
Test Flying Probe, E-Test
Base Material FR4
Electrical Components SMT, DIP, Through-Hole Components
Hole Size 0.2 mm Min.
Number Of Layers 2-12 Layers
Panel Size Custom Size
Copper Thickness 1 oz
Board Thickness 1.6 mm
Soldermask Green
Sensor Switch Optional
Surface Finish HASL, ENIG, OSP
Board Type Rigid
Product Type Custom PCB Assembly Board
Impedance Controlled Impedance
Min. Line Spacing 0.1 mm
Color Green
Min. Line Width 0.1 mm
Voltage Endurance 50-1500V
Insulation Resistance >10^12
Flame Resistance Level UL94-V0

Assembly Service One-Stop Turnkey Service
Application Ship Navigation Systems
OEM/ODM Service Available
Packing Anti-static Packaging
Quality Control 100% AOI, X-ray Inspection
Connector Types Custom
RoHS Compliance Yes
Lead Time 7-15 Working Days
Component Sourcing Full or Partial Sourcing

Product Description

Jump on the opportunity with our reduced-rate, one-stop custom PCB assembly board solutions! As a sterling exporter, manufacturer, and supplier based in India, we deliver invaluable circuit board manufacturing and assembly for ship navigation systems. From full or partial component sourcing to rigorous 100% AOI and X-ray inspections, our incomparable service ensures complete quality control. Grab yours today and enjoy custom-sized, RoHS-compliant PCBs with 2-12 layers, a solid 7-15 working day lead time, and anti-static packaging. Experience the valuable advantage of our turnkey OEM/ODM services.

Cutting-Edge Ship Navigation PCB for Demanding Applications

Our custom PCB assembly boards are engineered for seamless integration with advanced ship navigation systems. Designed for both durability and precision, these PCBs support rigid usage types and offer optional sensor switch features. The boards excel in demanding marine application media, providing controlled impedance, top-quality copper finish, and full compatibility with SMT, DIP, and through-hole electrical components, ensuring reliable vessel guidance and safety.

Reliable Supply and Swift Order Completion, Every Time

We pride ourselves on our incomparable supply ability and robust domestic market presence. All orders are completed at a remarkable rate, with products handed over within 7-15 working days. Our streamlined processes guarantee order completion on schedule, ensuring your projects remain on track and deadlines are met effortlessly. With consistently high delivery rates and reliable logistics, you can depend on us for all your ship navigation PCB assembly needs.

FAQ's of China one stop Custom Pcb Assembly board PCB Manufacturing and Assembly Ship navigation PCBA Circuit Board supplier:

Q: How does the one-stop turnkey PCB assembly service benefit my ship navigation system project?

A: Our one-stop turnkey service streamlines your entire project, from component sourcing to assembly and quality testing, minimizing risks and reducing lead time. This comprehensive approach ensures you receive a fully functional PCB assembly, ready for integration into your navigation system.

Q: What quality control measures are implemented during PCB manufacturing and assembly?

A: We perform 100% Automated Optical Inspection (AOI) and X-ray inspection on every PCB. Further tests such as flying probe and E-test are conducted to ensure exceptional quality, reliability, and compliance with industry standards.

Q: Where are your PCB manufacturing and assembly services available?

A: Our manufacturing facility is based in India, but we serve clients both domestically and internationally as a trusted exporter, ensuring efficient delivery regardless of your location.

Q: When can I expect my ship navigation PCB order to be delivered?

A: We hand over completed PCB assemblies within 7-15 working days, depending on your specific requirements and order size, ensuring timely project execution.

Q: What customization options are available for components, size, and connectors?

A: You can request custom panel sizes, connector types, and choose between full or partial component sourcing. We also accommodate 2-12 layer boards and a range of surface finishes, meeting diverse technical and operational needs.

Q: How do I initiate an order for custom PCBA boards for ship navigation systems?

A: Contact our sales team with your requirements. We'll guide you through the process, from design and sourcing to manufacturing and delivery, making the ordering experience efficient and personalized.
