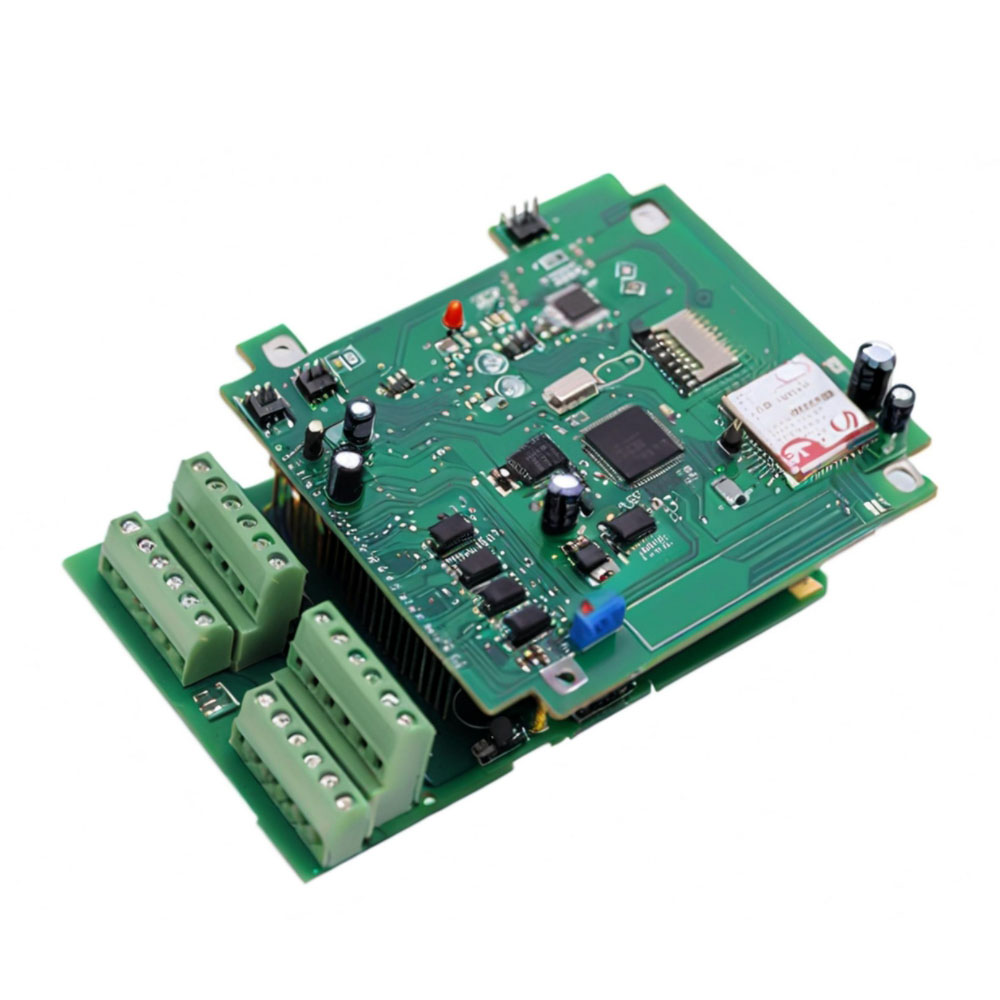

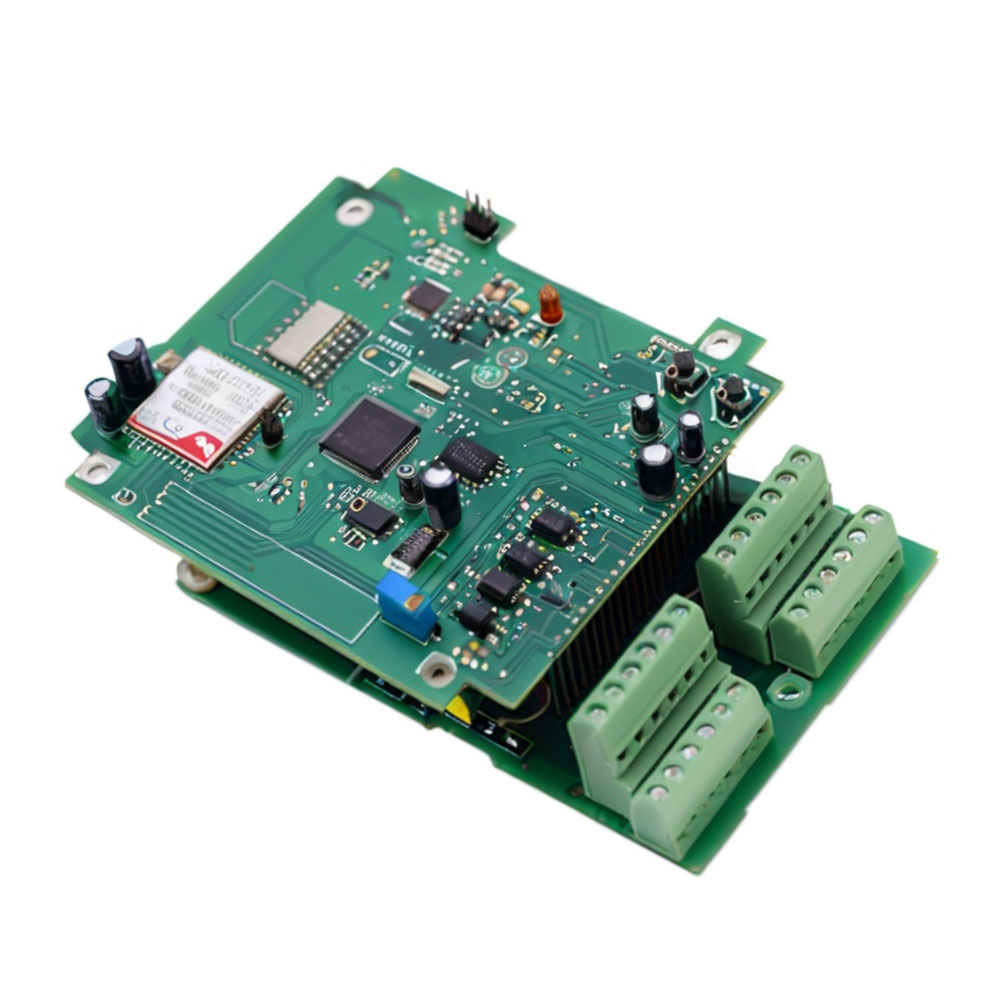

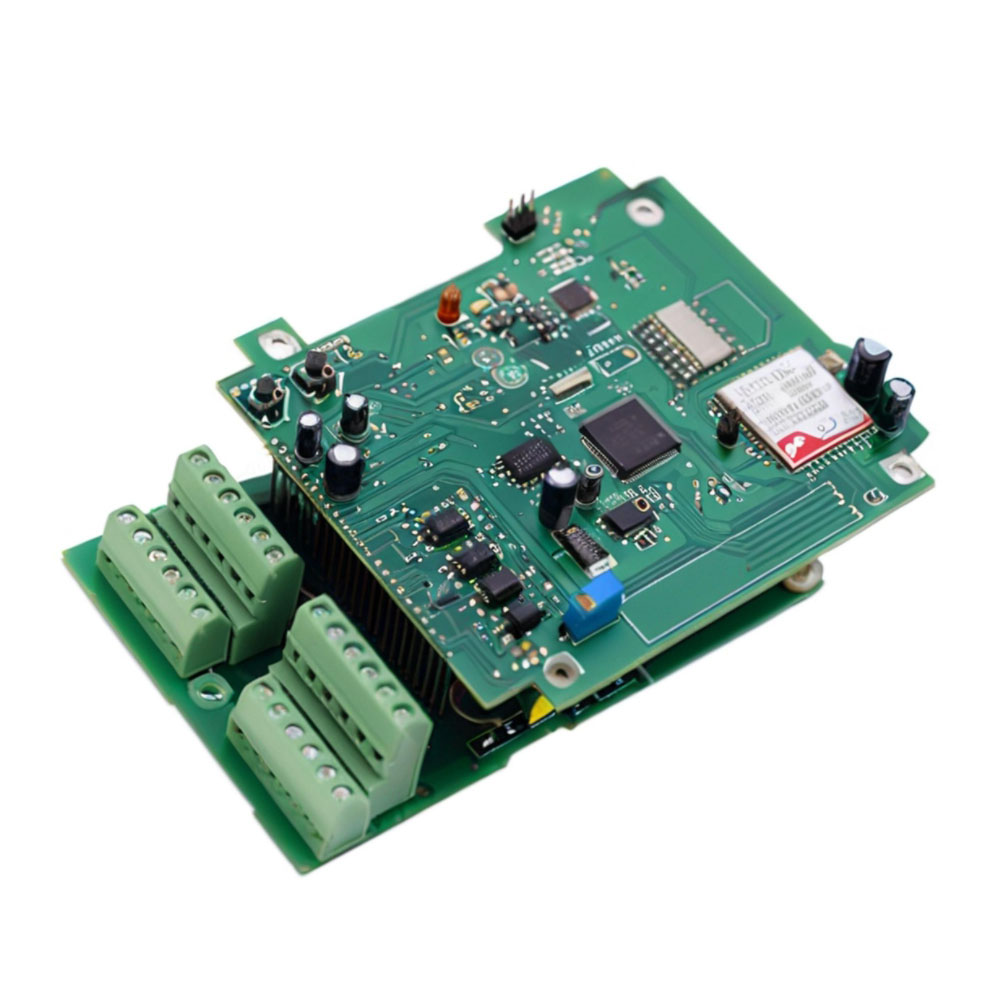

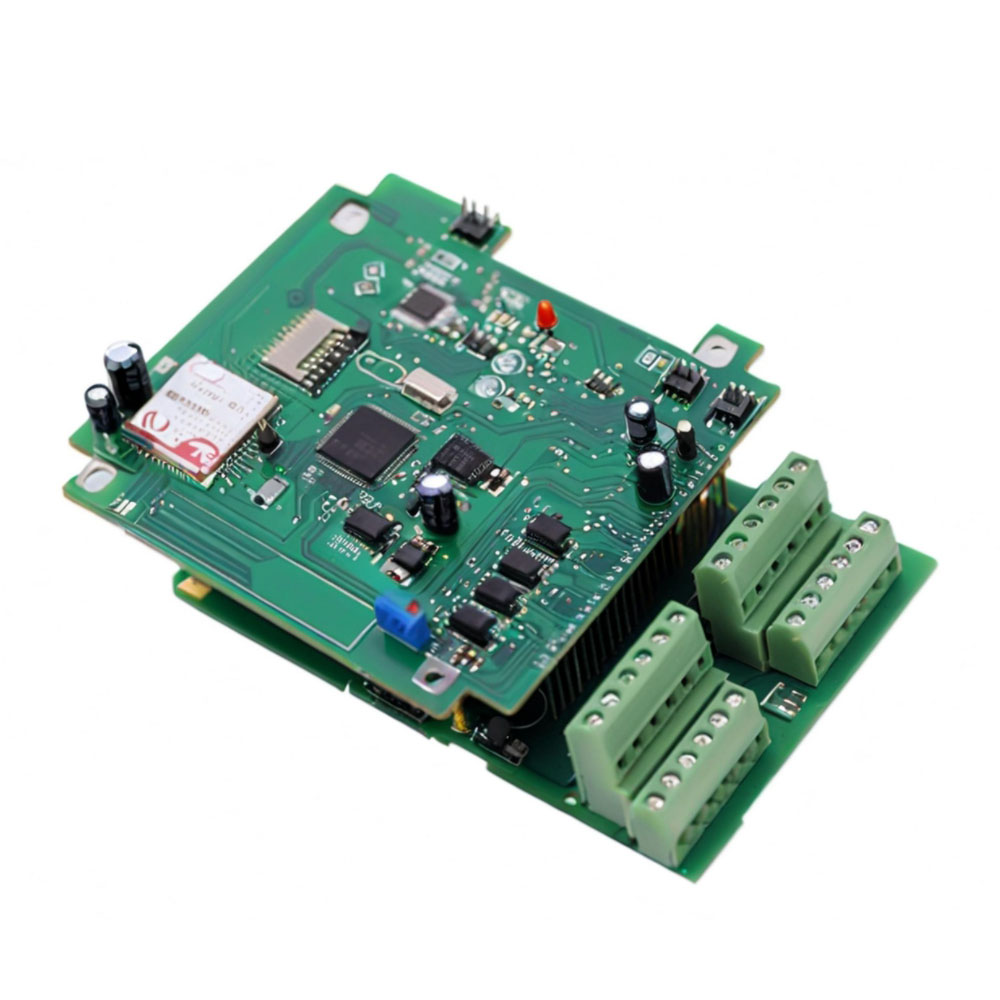

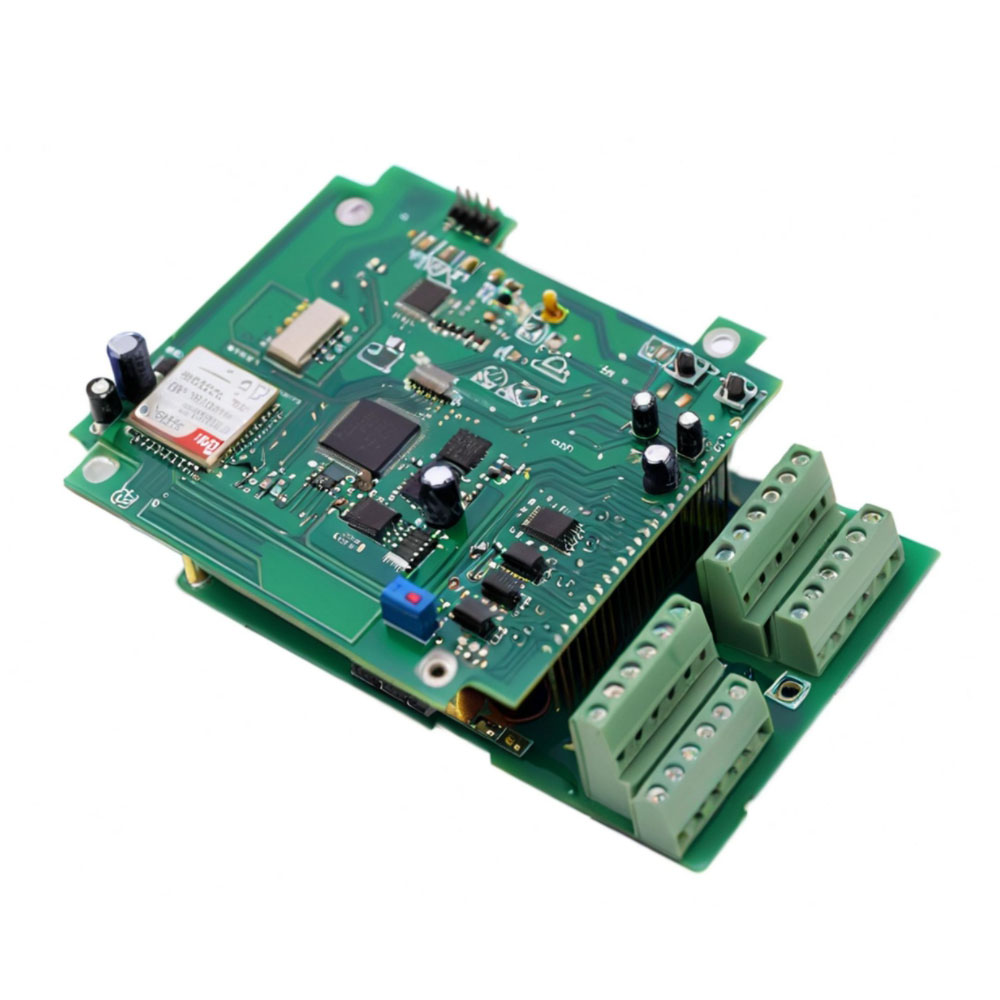

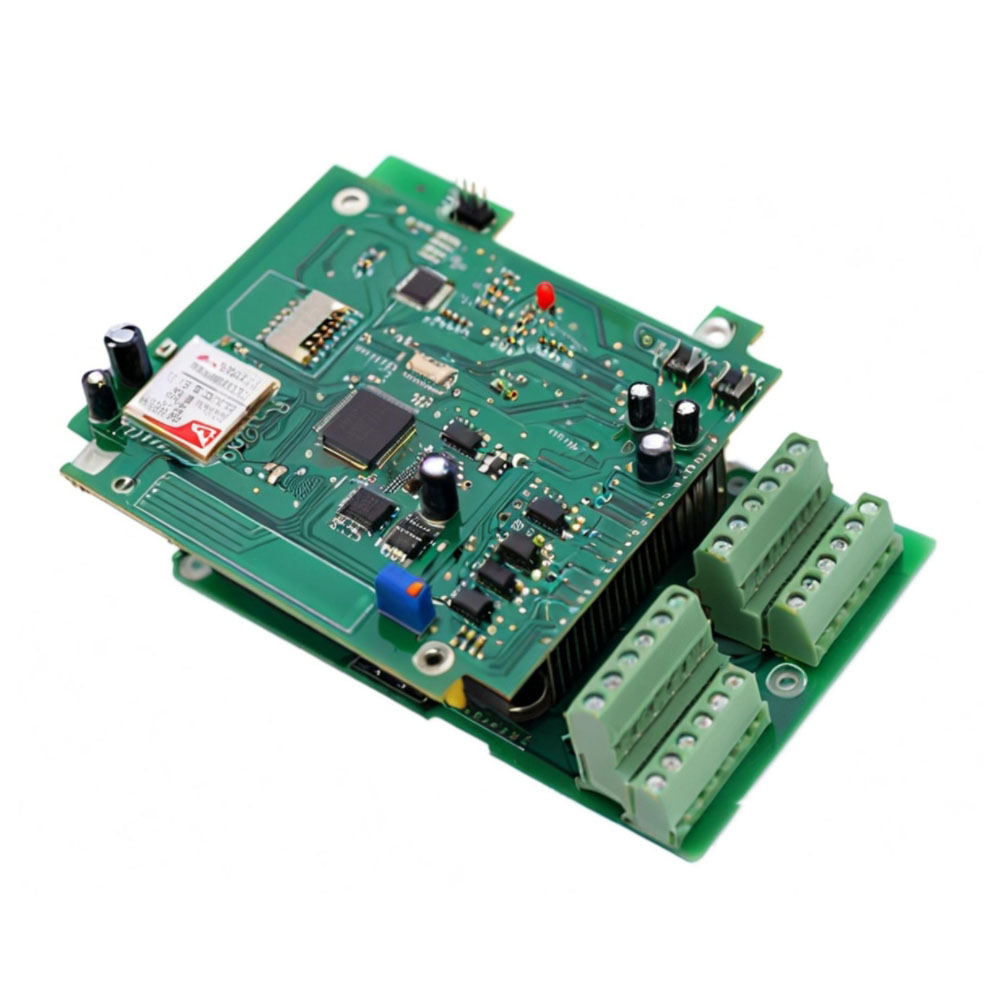

China PCBA one stop Manufacture PCB Assembly Fast PCBA Service Prototype PCB Assembly supplier

China PCBA one stop Manufacture PCB Assembly Fast PCBA Service Prototype PCB Assembly supplier

Get a Price/Quote

Product Details:

Flame Resistance Level UL 94V-0
Silkscreen White, Yellow, Custom
Impedance Controlled impedance available
Hole Size Min. 0.2 mm
Min. Line Spacing 0.075 mm
Insulation Resistance >500M
Soldermask Green, Red, Blue, Black, White, etc.
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

China PCBA one stop Manufacture PCB Assembly Fast PCBA Service Prototype PCB Assembly supplier Price And Quantity

Price Or Price Range INR
Minimum Order Quantity 1 Piece

China PCBA one stop Manufacture PCB Assembly Fast PCBA Service Prototype PCB Assembly supplier Product Specifications

Electrical Components SMD, Through Hole, Mixed
Flame Resistance Level UL 94V-0
Panel Size Customizable as per design
Min. Line Width 0.075 mm
Voltage Endurance 50V-2000V (as design)
Board Thickness 0.6-2.0 mm
Product Type PCBA (Printed Circuit Board Assembly)
Color Green / Customized
Base Material FR-4, CEM-1, Aluminum, Rogers
Sensor Switch Supported (custom option)
Test AOI, X-ray, ICT, Functional Test
Impedance Controlled impedance available
Copper Thickness 1-2 oz
Silkscreen White, Yellow, Custom
Hole Size Min. 0.2 mm
Surface Finish HASL, ENIG, Immersion Tin, OSP, Gold Plating
Min. Line Spacing 0.075 mm
Insulation Resistance >500M
Number Of Layers 1-24 Layers
Board Type Rigid, Flexible, Rigid-Flex
Soldermask Green, Red, Blue, Black, White, etc.

Other Services Conformal Coating, Programming, IC Burning, Cable Assembly
Assembly Standards IPC-A-610, RoHS Compliant
Assembly Type SMT, DIP, Mixed, Prototype & Mass Production
Application Consumer Electronics, Industrial, Automotive, Medical, LED, Telecommunications
Stencil Service Laser-cut stainless steel stencil available
Maximum PCB Size 600mm x 1200mm
Minimum Order Quantity 1 piece (prototype)
Packing ESD-safe, custom packaging available
Component Pitch up to 0.2 mm (for fine-pitch devices)
Lead Time Rapid Prototype: 1-7 days, Mass Production: 7-15 days
File Format Supported Gerber, BOM, Centroid, Pick & Place
Component Sourcing Turnkey, Partial Turnkey, or Consigned
Testing Service Flying Probe, Functional, ICT, X-ray

Product Description

Experience sizzling efficiency and top-ranking quality with our China PCBA One Stop Manufacture PCB Assembly! From rapid prototypes to mass production, we deliver marvelous precision through SMT, DIP, and mixed assembly types, supporting turnkey or consigned sourcing. Enjoy lightning lead times-just 1-7 days for prototypes and 7-15 for large runs. Utilise our offer to customize PCB size, color, and surface finish while ensuring RoHS compliance and IPC-A-610 standards. Pick yours today and let our towering capabilities boost your innovations across automotive, medical, consumer electronics, industrial, and telecommunications sectors.

Marvelous Advantages & Diverse Uses

Our PCBA service stands out with rapid turnaround, custom solutions, and extensive assembly capabilities. It is trusted by top companies in consumer electronics, industry, automotive, medical fields, and telecommunications. With advanced testing, various layers, customizable sizes, and a wide range of colors, we ensure reliability and innovation. Marvel at our flexibility, quality assurance, and advanced engineering support, making us a preferred partner for your complex and critical PCB assembly requirements.

FOB Port, Ability & Offers-Delivered Worldwide

We offer flexible FOB Port options across major Chinese ports, ensuring seamless delivery worldwide. Our supply ability exceeds thousands of pieces monthly, tailored to your demands without minimums for prototypes. Samples are available on request, and quotations are swiftly handed over for your review. Take advantage of our exceptional capacity and marvelous execution to meet tight timelines and challenging project scopes with confidence.

FAQ's of China PCBA one stop Manufacture PCB Assembly Fast PCBA Service Prototype PCB Assembly supplier:

Q: How fast can I expect my prototype PCB assembly to be completed?

A: Our rapid prototype service delivers completed PCB assemblies within 1-7 days, depending on complexity and requirements.

Q: What types of PCB assembly processes do you provide?

A: We offer SMT, DIP, mixed, and both prototype and mass production assembly, tailored to your exact needs and supporting various component sourcing models.

Q: Where can your PCBA services be used?

A: Our manufacturing supports a wide range of applications, including consumer electronics, industrial automation, automotive systems, medical devices, LED solutions, and telecommunications.

Q: What testing methods are utilized to ensure reliability?

A: We employ Flying Probe, ICT, Functional, AOI, and X-ray testing services to guarantee high standards of quality and dependability for every assembled board.

Q: What is the minimum order quantity for prototypes?

A: You can order as little as 1 piece for prototype PCB assembly, making it accessible for any size project or initial development cycle.

Q: What are the benefits of your turnkey component sourcing?

A: Turnkey, partial turnkey, or consigned sourcing streamlines procurement, reduces lead time, and enhances quality control-from component acquisition to assembly completion.
