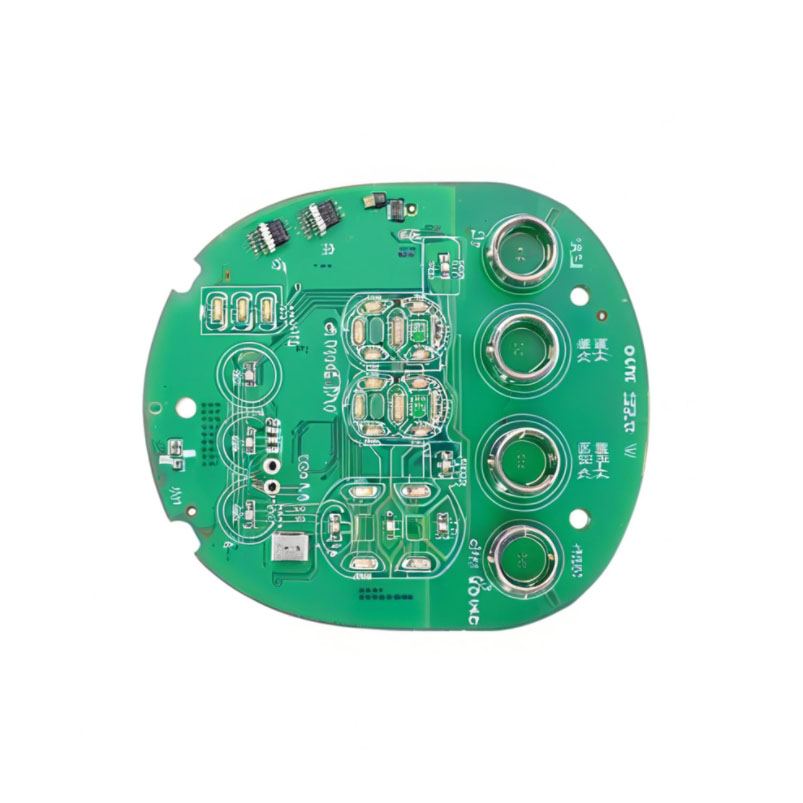

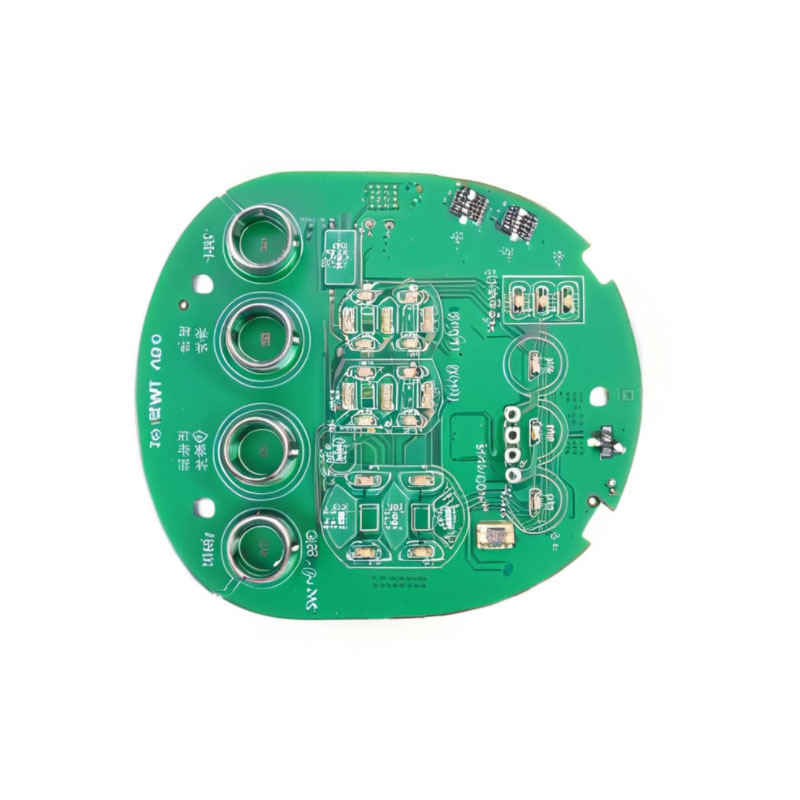

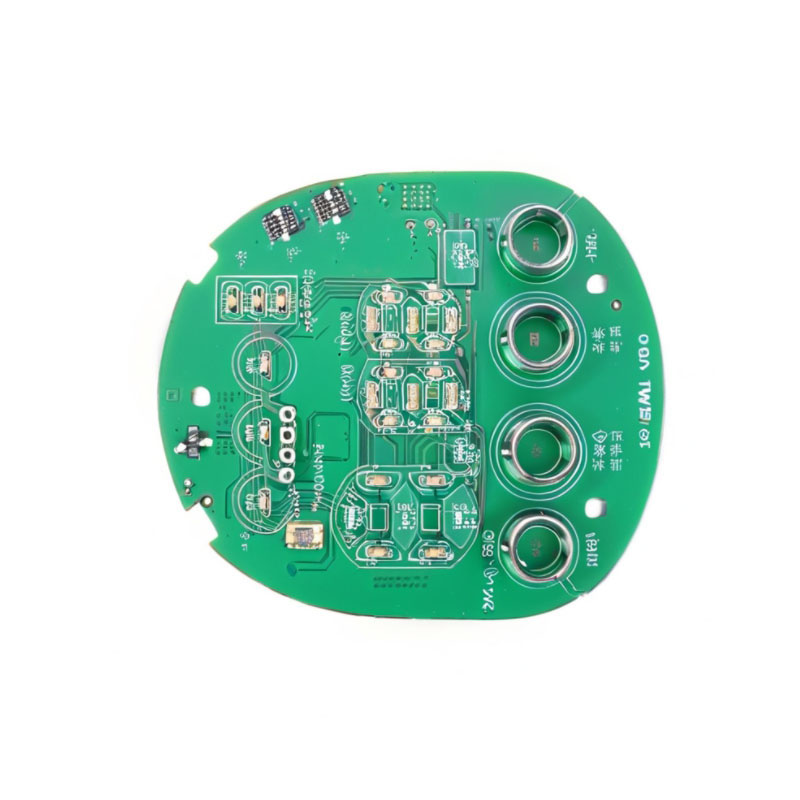

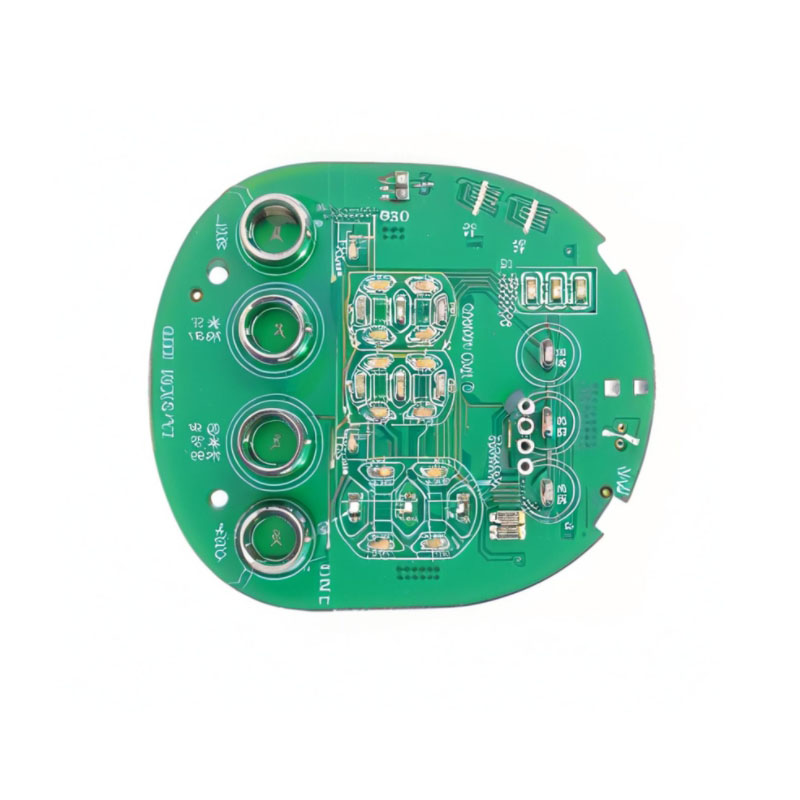

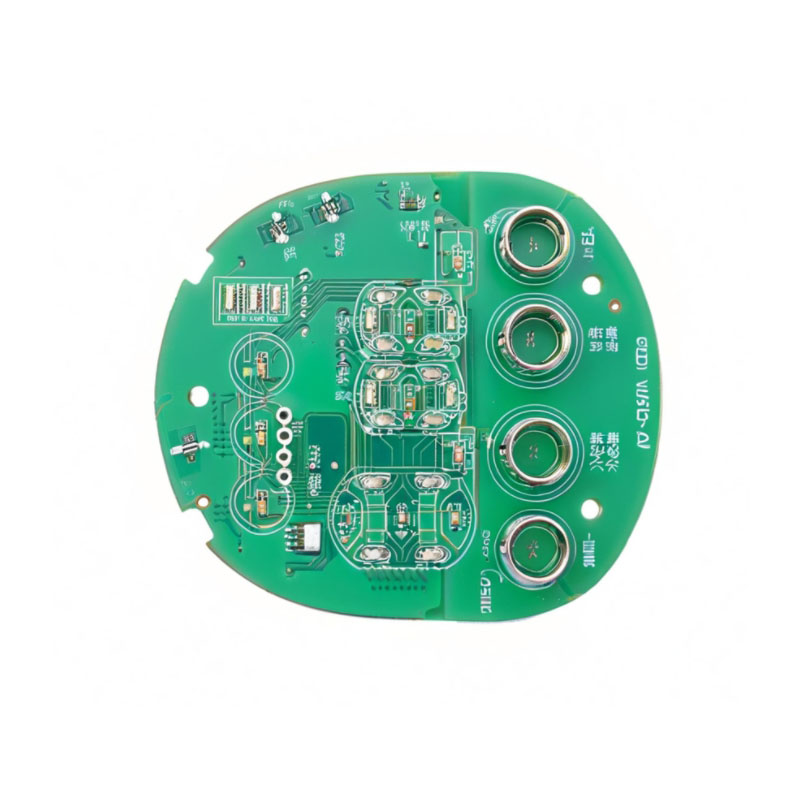

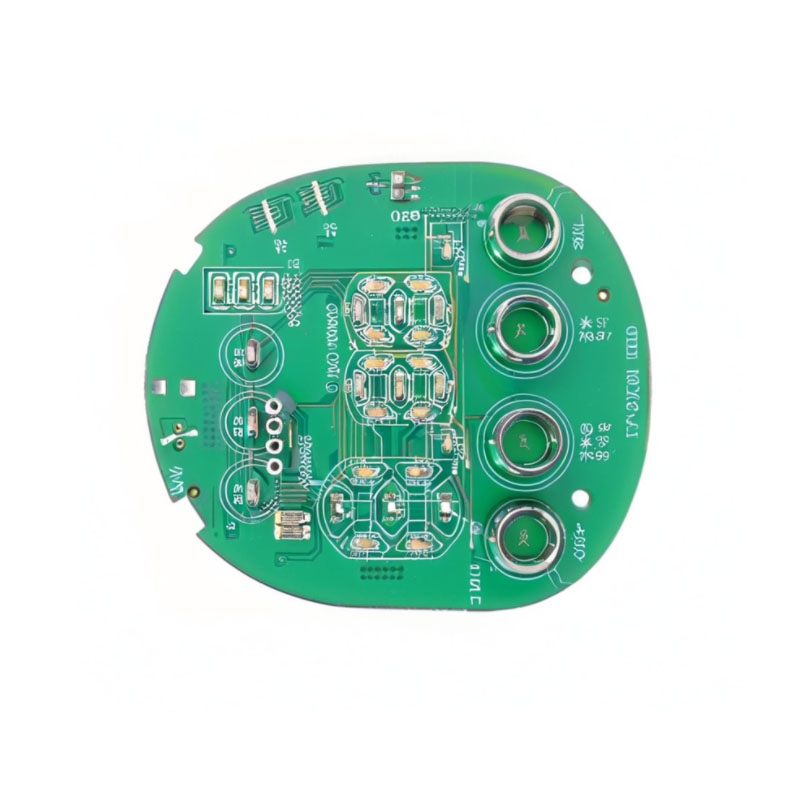

BGA PCB SMT Assembly Electronics PCBA EMS One Stop Service Manufacturer

BGA PCB SMT Assembly Electronics PCBA EMS One Stop Service Manufacturer

Get a Price/Quote

Product Details:

Board Type Rigid, Flex, Rigid-Flex
Impedance 5%
Test AOI, Flying Probe, X-ray, ICT
Min. Line Spacing 0.075mm
Min. Line Width 0.075mm
Silkscreen White/Black/Custom
Soldermask Green, Red, Blue, Black, White
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

BGA PCB SMT Assembly Electronics PCBA EMS One Stop Service Manufacturer Price And Quantity

Minimum Order Quantity 1 Piece

Stencil Service Available
Production Capacity 50,000 m2/month
Component Procurement Full/Partial Turnkey or Consigned
Assembly Service OEM/ODM EMS One-Stop Service
Lead Time 3-12 working days
MOQ 1 Piece
Application Consumer Electronics, Industrial, Medical, Automotive, Telecommunication
Test Method 100% E-Test, Function Test, Visual Inspection
SMT Capability 0201, BGA, QFN, TQFP, PLCC, SOIC, CHIP

BGA PCB SMT Assembly Electronics PCBA EMS One Stop Service Manufacturer Product Specifications

Hole Size 0.15mm Minimum
Number Of Layers 1-24 layers
Electrical Components High precision SMD, BGA, QFP, DIP, etc.
Insulation Resistance >10^12
Impedance 5%
Color Green, Blue, Red, Black
Sensor Switch Optional
Soldermask Green, Red, Blue, Black, White
Board Type Rigid, Flex, Rigid-Flex
Product Type BGA PCB SMT Assembly
Flame Resistance Level 94V-0
Voltage Endurance 250V - 3000V
Panel Size Custom
Board Thickness 0.6mm - 2.0mm
Min. Line Width 0.075mm
Silkscreen White/Black/Custom
Surface Finish HASL, ENIG, OSP, Immersion Silver/Tin, Gold plating
Copper Thickness 1oz - 3oz
Base Material FR-4, CEM-1, CEM-3, Aluminum, Rogers
Min. Line Spacing 0.075mm
Test AOI, Flying Probe, X-ray, ICT

Stencil Service Available
Production Capacity 50,000 m2/month
Component Procurement Full/Partial Turnkey or Consigned
Assembly Service OEM/ODM EMS One-Stop Service
Lead Time 3-12 working days
MOQ 1 Piece
Application Consumer Electronics, Industrial, Medical, Automotive, Telecommunication
Test Method 100% E-Test, Function Test, Visual Inspection
SMT Capability 0201, BGA, QFN, TQFP, PLCC, SOIC, CHIP
