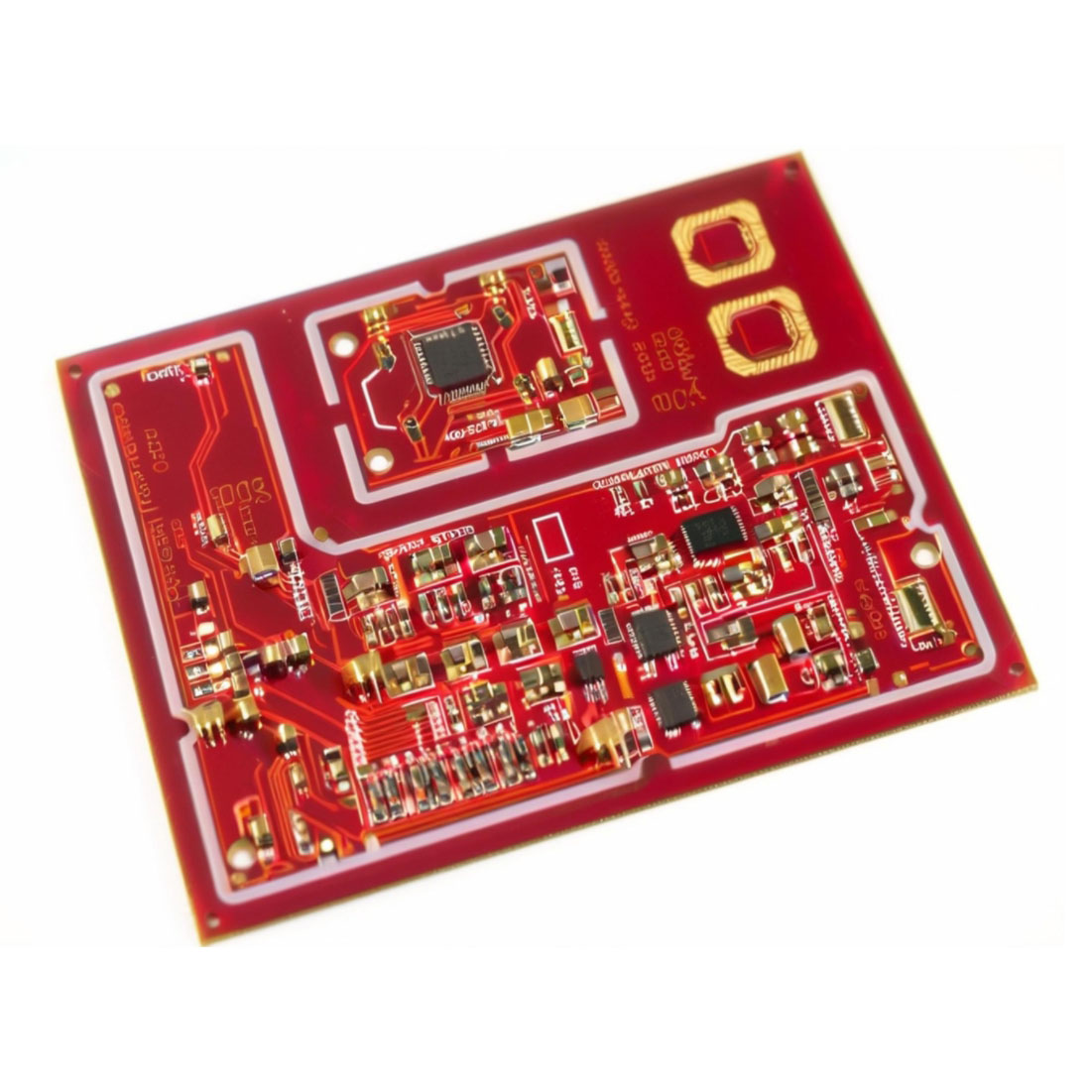

PCBA Layout Design and Assembly one stop service PCBA Drawing Manufacturer

PCBA Layout Design and Assembly one stop service PCBA Drawing Manufacturer

Get a Price/Quote

Product Details:

Test 100% Electrical Test, AOI, Functional Test
Min. Line Width 0.075mm
Flame Resistance Level UL94V-0
Board Type Rigid, Flex, Rigid-Flex
Insulation Resistance >10^12
Soldermask Green / Blue / Black / Red
Silkscreen White / Black / Yellow
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

PCBA Layout Design and Assembly one stop service PCBA Drawing Manufacturer Price And Quantity

Minimum Order Quantity 1
Price Or Price Range INR

Soldering Type Lead/Lead-free (RoHS Compliant)
Component Sourcing Full or Partial
Packing Anti-static packaging
Design Format Supported Gerber, Altium, Eagle, Protel, and more
OEM/ODM Capability Supported
Assembly Service One-Stop Turnkey (including procurement, SMT, DIP, testing, final assembly)
Application Consumer Electronics, Automotive, Industrial, Medical, Communication, Others
Assembly Capacity High-volume & Prototype capable
Minimum Order Quantity (MOQ) 1 Piece
Lead Time 5-15 days (project-dependent)

PCBA Layout Design and Assembly one stop service PCBA Drawing Manufacturer Product Specifications

Board Type Rigid, Flex, Rigid-Flex
Sensor Switch Optional as per requirement
Impedance Controlled impedance available
Hole Size Min 0.15mm
Board Thickness 0.6 mm - 2.0 mm
Electrical Components SMT & Through-Hole, Customizable
Flame Resistance Level UL94V-0
Panel Size Customizable (Max 610mm x 1200mm)
Voltage Endurance 1500V AC / Minute
Product Type PCBA Layout Design and Assembly
Silkscreen White / Black / Yellow
Min. Line Width 0.075mm
Min. Line Spacing 0.075mm
Insulation Resistance >10^12
Surface Finish HASL, ENIG, OSP, Silver, Gold
Soldermask Green / Blue / Black / Red
Color Green / Blue / Black
Number Of Layers 1-24 layers
Test 100% Electrical Test, AOI, Functional Test
Copper Thickness 1 oz - 3 oz
Base Material FR-4, Rogers, CEM-1, CEM-3, Aluminum

Soldering Type Lead/Lead-free (RoHS Compliant)
Component Sourcing Full or Partial
Packing Anti-static packaging
Design Format Supported Gerber, Altium, Eagle, Protel, and more
OEM/ODM Capability Supported
Assembly Service One-Stop Turnkey (including procurement, SMT, DIP, testing, final assembly)
Application Consumer Electronics, Automotive, Industrial, Medical, Communication, Others
Assembly Capacity High-volume & Prototype capable
Minimum Order Quantity (MOQ) 1 Piece
Lead Time 5-15 days (project-dependent)

Product Description

Experience a truly elite, one-stop PCBA Layout Design and Assembly service where scarcity meets unmatchable quality and unbeatable efficiency. As a first-string PCBA drawing manufacturer and assembly provider, we offer turnkey solutions-covering procurement, SMT, DIP, testing, and final assembly. Supporting Gerber, Altium, Eagle, and Protel formats, we handle both full and partial component sourcing for unmatched flexibility. Capable of fast, scalable production, our services suit any volume and comply with stringent industry and RoHS standards to elevate your next electronics project above the rest.

Wide Application and Custom Usage: All Sectors Supported

Our PCBA Layout Design and Assembly services seamlessly integrate into applications across consumer electronics, automotive, industrial control, medical devices, communications, and beyond. Each PCB can be meticulously customized to precise specifications such as panel size, board color, sensor switches, and layers, ensuring suitability for niche or mainstream usage. This elite adaptability gives our customers the rare capability to address unique and broad market needs within tight cycles and uncompromising standards.

Domestic Market Reach, Cost Efficiency, and Delivery Commitment

We cater extensively to the Indian domestic market, optimizing expenditure through competitive list prices and reliable packing and dispatch strategies. All PCBA units are securely shipped in anti-static packaging to ensure protected transit. Our streamlined operations allow delivery times as fast as 5-15 days, based on project specifics, minimizing downtime and maximizing value for clients. Each dispatch is tailored to align with operational urgency and distinct customer requirements.

FAQ's of PCBA Layout Design and Assembly one stop service PCBA Drawing Manufacturer:

Q: How does your one-stop PCBA layout design and assembly process work?

A: Our one-stop service encompasses every stage: from PCB design (accepting Gerber, Altium, Eagle, and more formats) to full or partial component sourcing, automated SMT/DIP assembly, thorough testing, and final assembly-ensuring a seamless, hassle-free customer experience.

Q: What are the main benefits of choosing your PCBA drawing and assembly service?

A: Clients benefit from unbeatable efficiency, rapid turnaround of 5-15 days, elite-quality manufacturing (prototypes to high volumes), and full compliance with RoHS and industry requirements. Customization and advanced testing deliver unmatchable reliability for any project.

Q: When can I expect to receive my PCBA order after placement?

A: Lead times range from 5 to 15 days after order confirmation, depending on project complexity and specific requirements. Our team will confirm exact timing during the order process to ensure transparency and planning.

Q: Where are your PCBA services primarily applied?

A: Our PCBA solutions are used in a scarce range of advanced sectors including consumer electronics, automotive, industrial automation, medical equipment, communication systems, and other specialized applications, ensuring elite performance across all fields.

Q: What is the list price structure and how is expenditure managed?

A: We maintain competitive list prices with detailed upfront quotations. Packing and dispatch are included as part of the comprehensive service, ensuring transparent expenditure management for all clients without unexpected charges.
