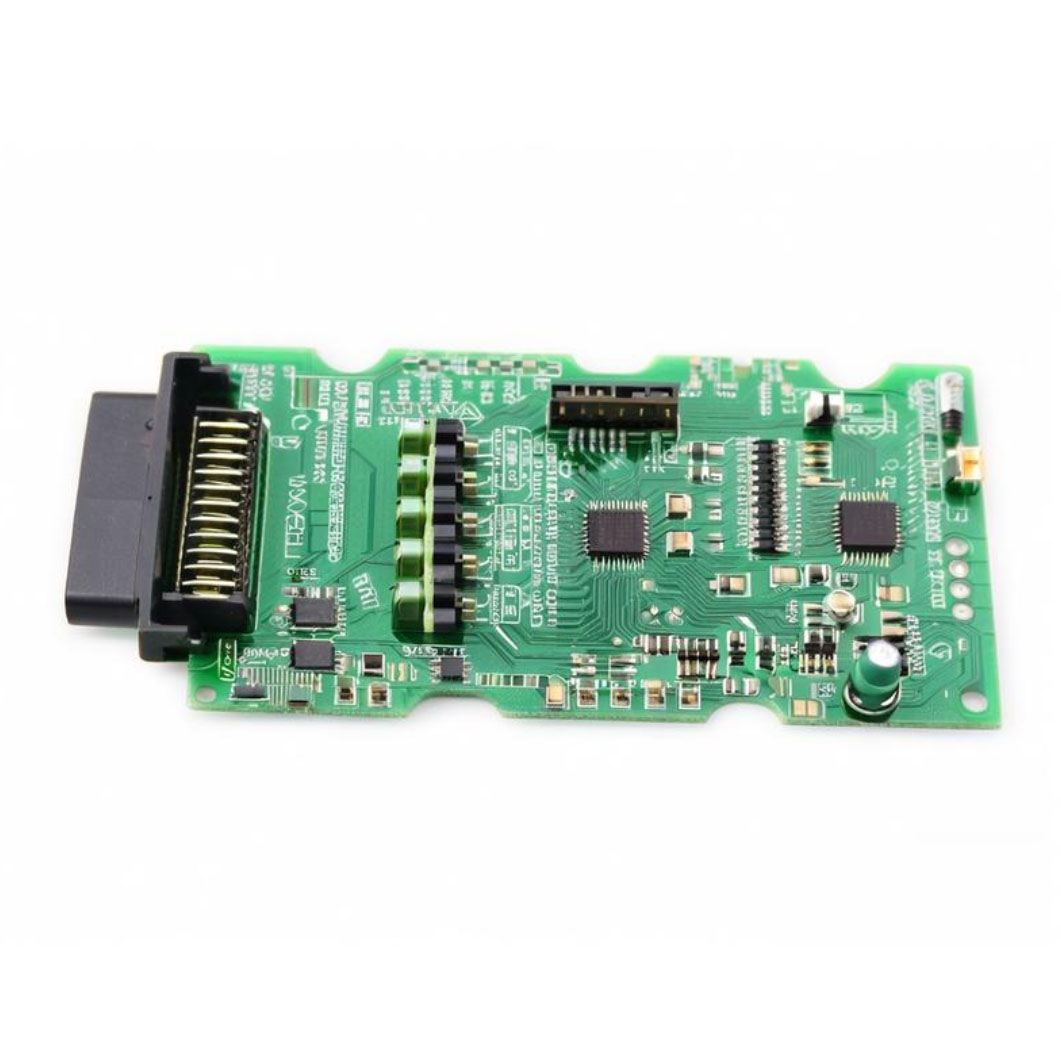

Pcb board assembly printing circuit board manufacturer pcba electronic PCB SMT pcb factory

Pcb board assembly printing circuit board manufacturer pcba electronic PCB SMT pcb factory

Get a Price/Quote

Product Details:

Silkscreen White/Black/Yellow, Legend Print
Soldermask Green, Blue, Black, Red, White, Yellow
Board Type Rigid, Flexible, Rigid-Flex
Insulation Resistance >10^12 (Normal)
Min. Line Spacing 0.075mm (3mil)
Min. Line Width 0.075mm (3mil)
Voltage Endurance >3000V
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pcb board assembly printing circuit board manufacturer pcba electronic PCB SMT pcb factory Price And Quantity

Price Or Price Range INR
Minimum Order Quantity 1

MOQ 1 Piece
Lead Time PCB: 3-7 Days, PCBA: 7-15 Days (standard batch)
Component Placement Accuracy 0.05mm
OEM/ODM Service Supported
Package Types Supported BGA, QFP, SOP, SOT, QFN, PLCC, CSP, etc.
PCB Stencil Laser Cut Stainless Steel Available
Minimum Solder Mask Dam 0.1mm
Assembly Capacity Up to 10 million components per month
RoHS Compliance Yes
Assembly Process SMT (Surface Mount Technology), Through Hole, Mixed Technology

Pcb board assembly printing circuit board manufacturer pcba electronic PCB SMT pcb factory Product Specifications

Min. Line Width 0.075mm (3mil)
Board Thickness 0.6mm - 3.2mm
Impedance +/-10% Controlled Impedance
Voltage Endurance >3000V
Test 100% E-test, AOI, X-ray, Function Test based on requirement
Color Green, Blue, Black, Red, White
Surface Finish HASL, ENIG, OSP, Immersion Silver/Tin, Gold Finger, Lead-free, etc.
Silkscreen White/Black/Yellow, Legend Print
Number Of Layers 1 - 24 Layers
Hole Size Min. 0.2mm
Electrical Components All SMT, THT and mixed placement supported
Sensor Switch Optional, upon requested assembly
Insulation Resistance >10^12 (Normal)
Board Type Rigid, Flexible, Rigid-Flex
Panel Size Max 600mm x 1200mm
Soldermask Green, Blue, Black, Red, White, Yellow
Min. Line Spacing 0.075mm (3mil)
Product Type PCB Board Assembly
Copper Thickness 1oz - 3oz
Flame Resistance Level UL94 V-0
Base Material FR-4, CEM-1, CEM-3, Aluminum, Rogers, Polyimide

MOQ 1 Piece
Lead Time PCB: 3-7 Days, PCBA: 7-15 Days (standard batch)
Component Placement Accuracy 0.05mm
OEM/ODM Service Supported
Package Types Supported BGA, QFP, SOP, SOT, QFN, PLCC, CSP, etc.
PCB Stencil Laser Cut Stainless Steel Available
Minimum Solder Mask Dam 0.1mm
Assembly Capacity Up to 10 million components per month
RoHS Compliance Yes
Assembly Process SMT (Surface Mount Technology), Through Hole, Mixed Technology
