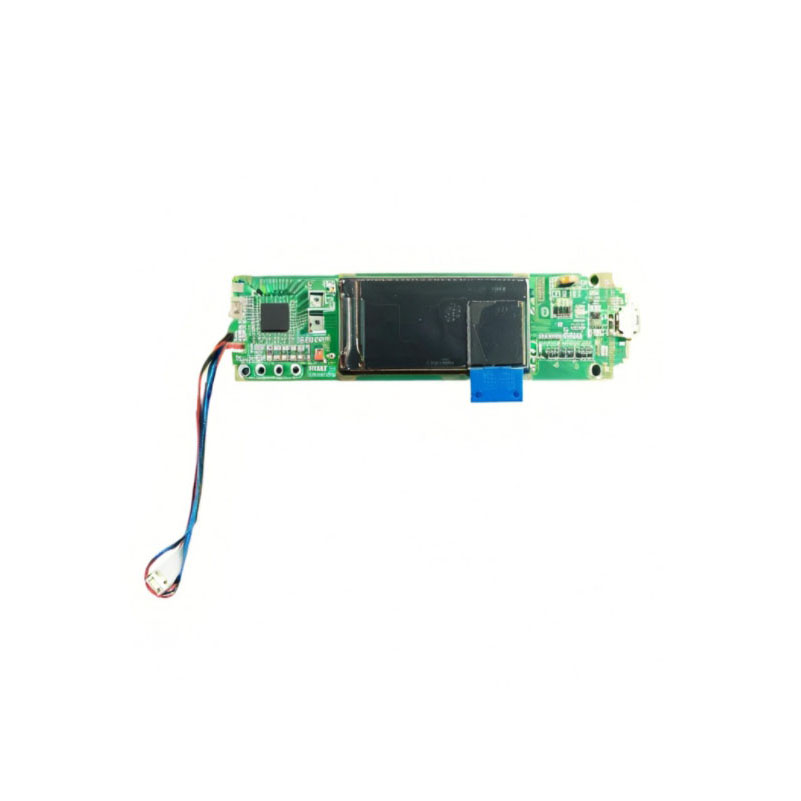

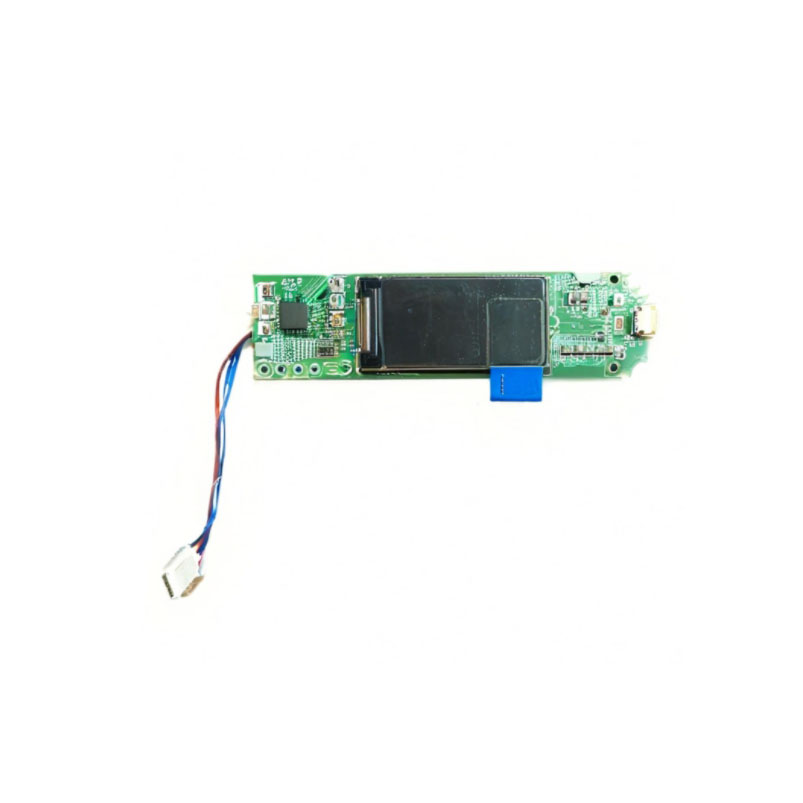

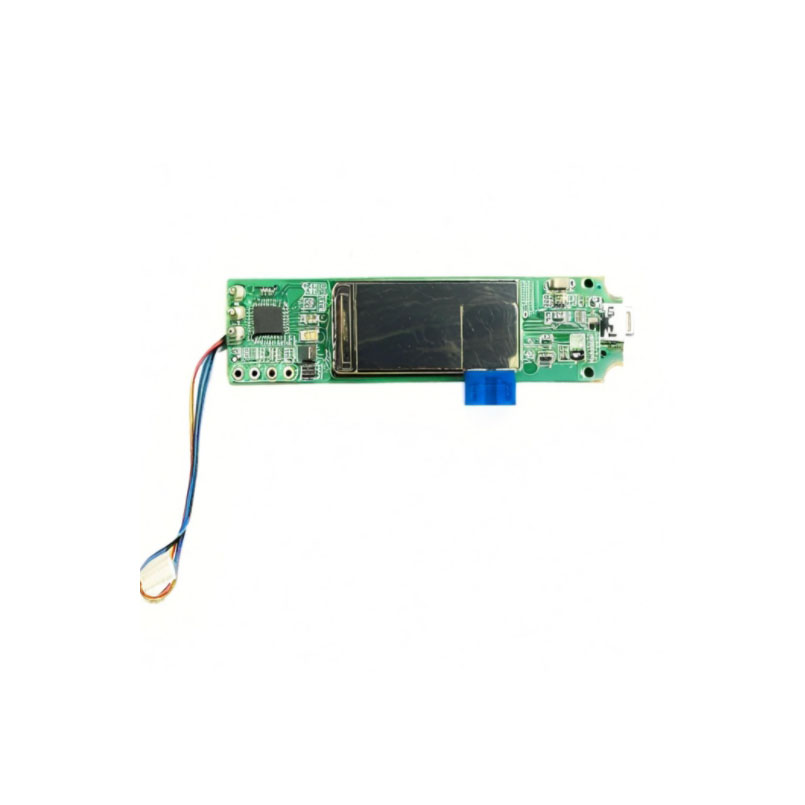

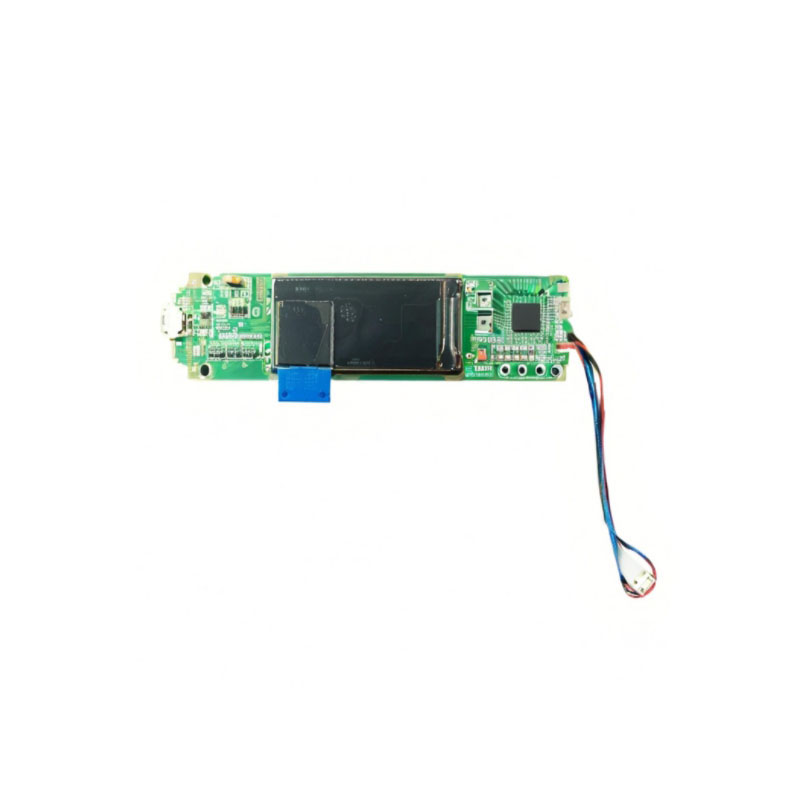

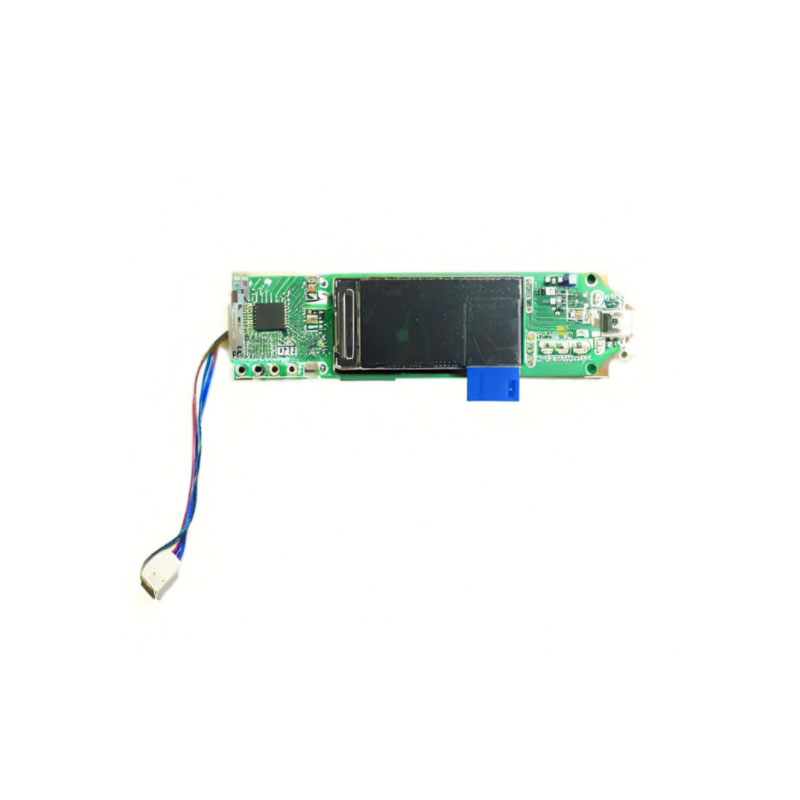

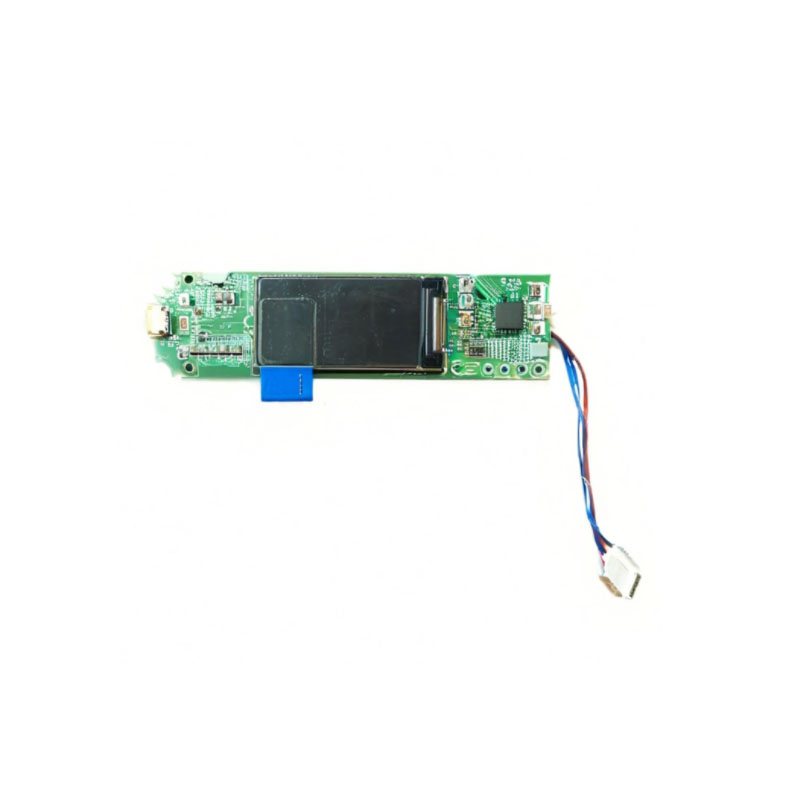

One stop custom professional Air Purifier PMU PCB Circuit boards DIP PCBA Assembling service pcba manufacturer

One stop custom professional Air Purifier PMU PCB Circuit boards DIP PCBA Assembling service pcba manufacturer

Get a Price/Quote

Product Details:

Hole Size Min. 0.2mm
Soldermask Green, Red, Blue, Black, Yellow, White (Customizable)
Min. Line Spacing 0.1mm
Min. Line Width 0.1mm
Test 100% E-test and AOI
Flame Resistance Level UL94V-0
Insulation Resistance >10^12
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

One stop custom professional Air Purifier PMU PCB Circuit boards DIP PCBA Assembling service pcba manufacturer Price And Quantity

Price Or Price Range INR
Minimum Order Quantity 1 Piece

One stop custom professional Air Purifier PMU PCB Circuit boards DIP PCBA Assembling service pcba manufacturer Product Specifications

Electrical Components High Quality Components Mounted (as per BOM)
Panel Size Customizable
Test 100% E-test and AOI
Board Type Rigid
Color Green
Flame Resistance Level UL94V-0
Product Type One-stop custom professional Air Purifier PMU PCB Circuit Board
Board Thickness 1.6mm
Voltage Endurance 1500V
Base Material FR4 (Halogen Free Optional)
Silkscreen White
Sensor Switch Integrated Sensor Switch (Optional)
Insulation Resistance >10^12
Copper Thickness 1oz
Hole Size Min. 0.2mm
Min. Line Width 0.1mm
Number Of Layers 2-16 layers (Custom)
Min. Line Spacing 0.1mm
Impedance 10% Controlled Impedance
Surface Finish HASL/ENIG/OSP
Soldermask Green, Red, Blue, Black, Yellow, White (Customizable)

OEM/ODM Support Available
Design Files Requirement Gerber, BOM, Pick and Place File, Testing Instruction (as needed)
Packing ESD Packing, Vacuum, Carton
MOQ 1 Piece
Assembly Type Through Hole (DIP), SMT, or Mixed Assembling
Operating Temperature Range -40C to +85C
Service Type OEM/ODM, Turnkey, One-Stop PCBA Service
Application Air Purifier, Home Appliances, Medical Device, Industrial Control
Mounting Technology DIP, SMT
Component Sourcing Provided (Turnkey) or Consigned
Lead Time 7-15 Working Days

Product Description

Unlock peerless innovation for your devices with our one-stop custom Air Purifier PMU PCB Circuit boards and DIP PCBA assembling service. Take advantage of first-class expertise in through hole (DIP), SMT, or mixed assembly, delivered with exceptional OEM/ODM flexibility and rapid 7-15 working day lead times. Gorgeous and robust, these PCBs are the backbone of air purifiers, medical devices, and industrial controls. Markdowns available for bulk orders. Enjoy a turnkey, reliable, and professional solution, complete with high-quality ESD packaging, rigorous testing, and comprehensive component sourcing-making us India's premier exporter, manufacturer, and supplier.

Diverse Applications and Site Integration

Our custom Air Purifier PMU PCB circuit boards are engineered for a range of applications including air purifiers, home appliances, medical devices, and industrial control systems. Suited for both commercial and industrial settings, these circuit boards seamlessly integrate at various operational sites, from medical facilities and manufacturing plants to residential complexes and public institutions, ensuring reliable and efficient performance wherever they're deployed.

Sample Availability and Export Packaging

Samples of our PCBA assembling service are readily available, allowing prospective clients to assess our quality firsthand. Our main export markets cover regions globally, reflecting our established presence as a leading supplier. Each order is carefully packed in ESD-secure and vacuum-sealed cartons to ensure optimal protection during transit. Products are promptly shipped or dispatched, with freight options tailored to suit your delivery requirements and ensure timely arrival at your destination.

FAQ's of One stop custom professional Air Purifier PMU PCB Circuit boards DIP PCBA Assembling service pcba manufacturer:

Q: How can I initiate an order for custom Air Purifier PMU PCB Circuit boards?

A: To start your order, simply send your Gerber files, BOM, Pick and Place file, and testing instructions if needed. Our team will guide you through the process from quote to dispatch.

Q: What applications are these custom PCB boards suitable for?

A: These boards are ideal for air purifiers, home appliances, medical devices, and industrial control systems, making them versatile for both commercial and industrial environments.

Q: When will my assembled PCBs be shipped after placing an order?

A: Typically, assembled PCBs are dispatched within 7 to 15 working days after order confirmation and file submission.

Q: Where do you export your PCBA services?

A: We export globally, with a strong presence across Asia, Europe, North America, and other regions, ensuring reliable service to clients worldwide.

Q: What is the benefit of your turnkey PCBA assembly service?

A: Our turnkey service handles everything from component sourcing to assembly and testing, providing you with a seamless, one-stop experience that saves you time and reduces complexities.
