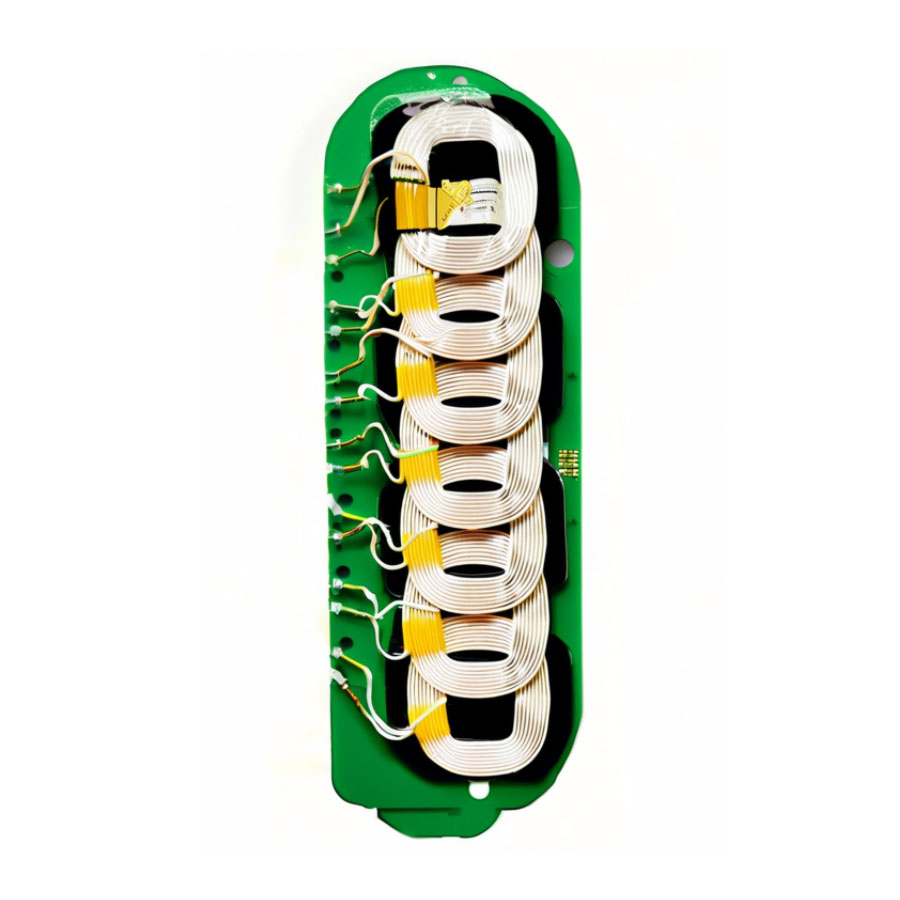

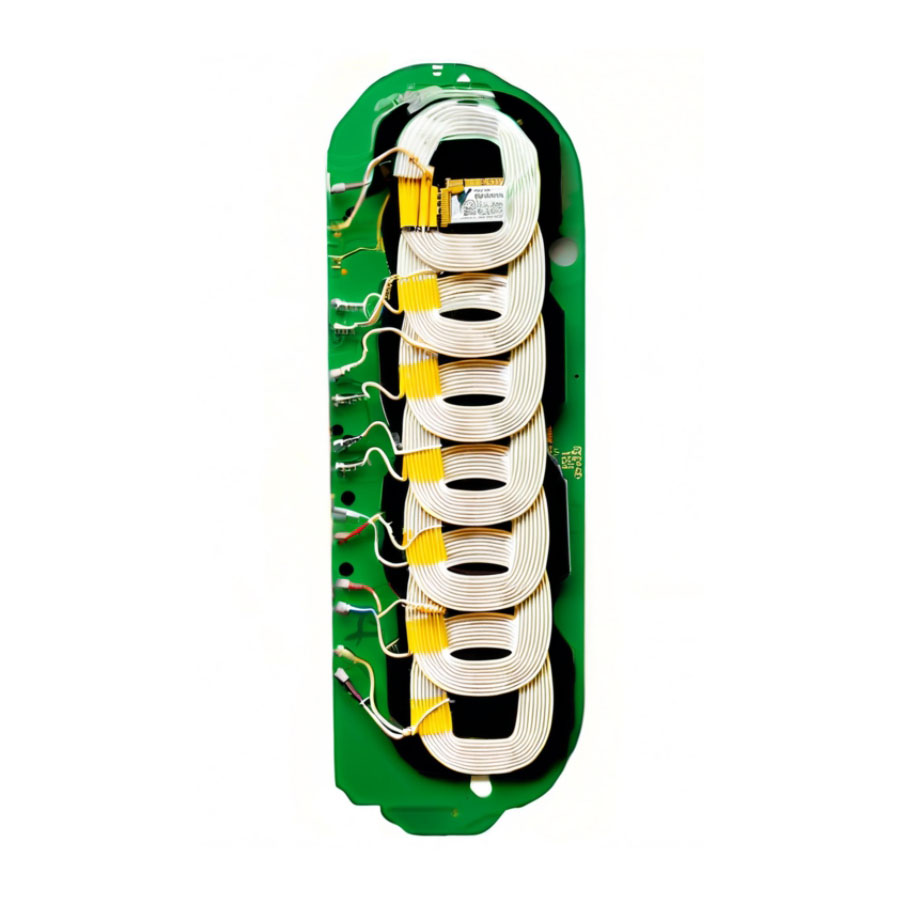

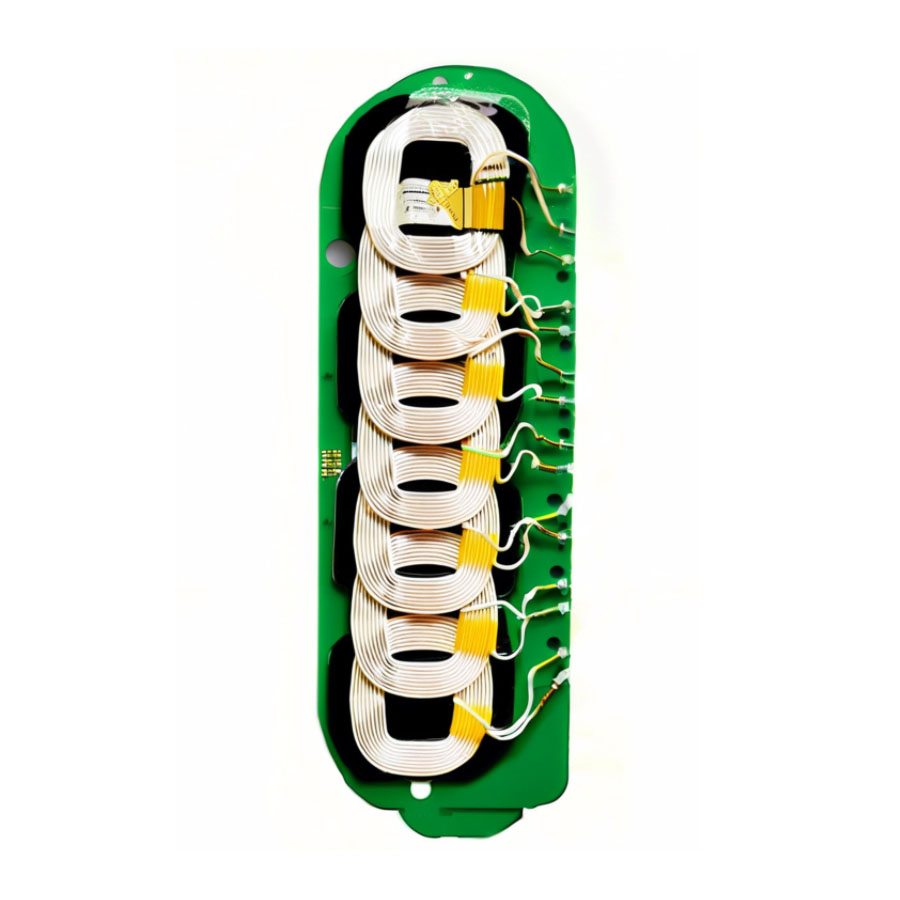

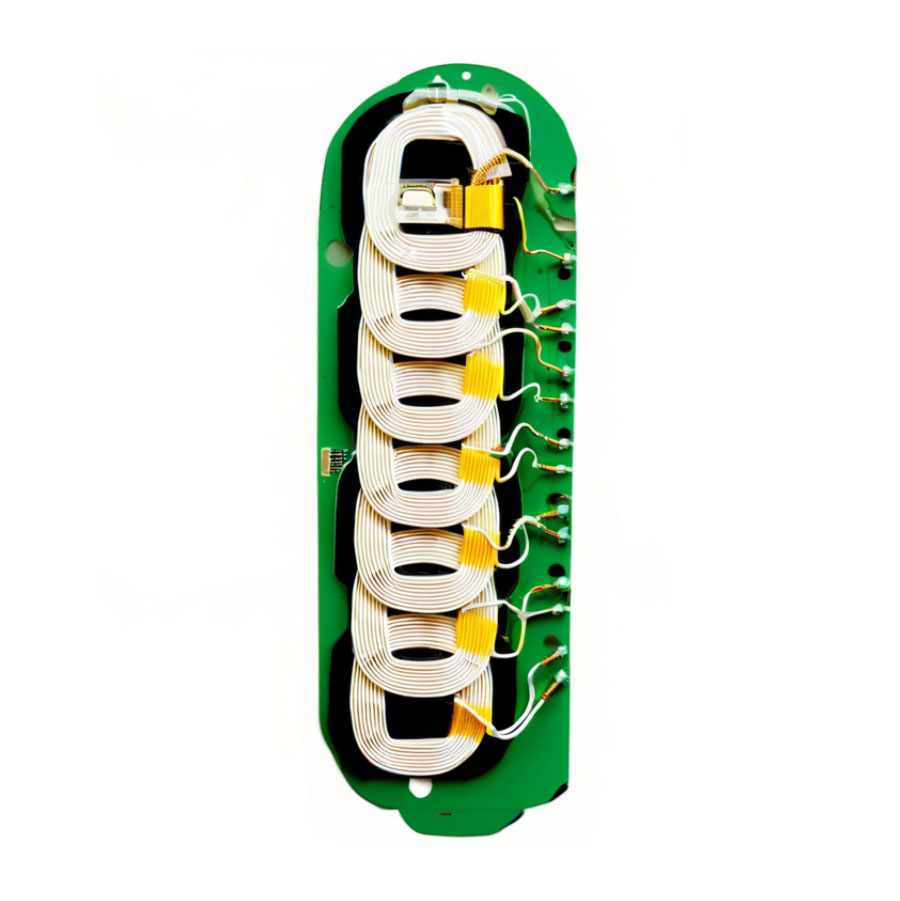

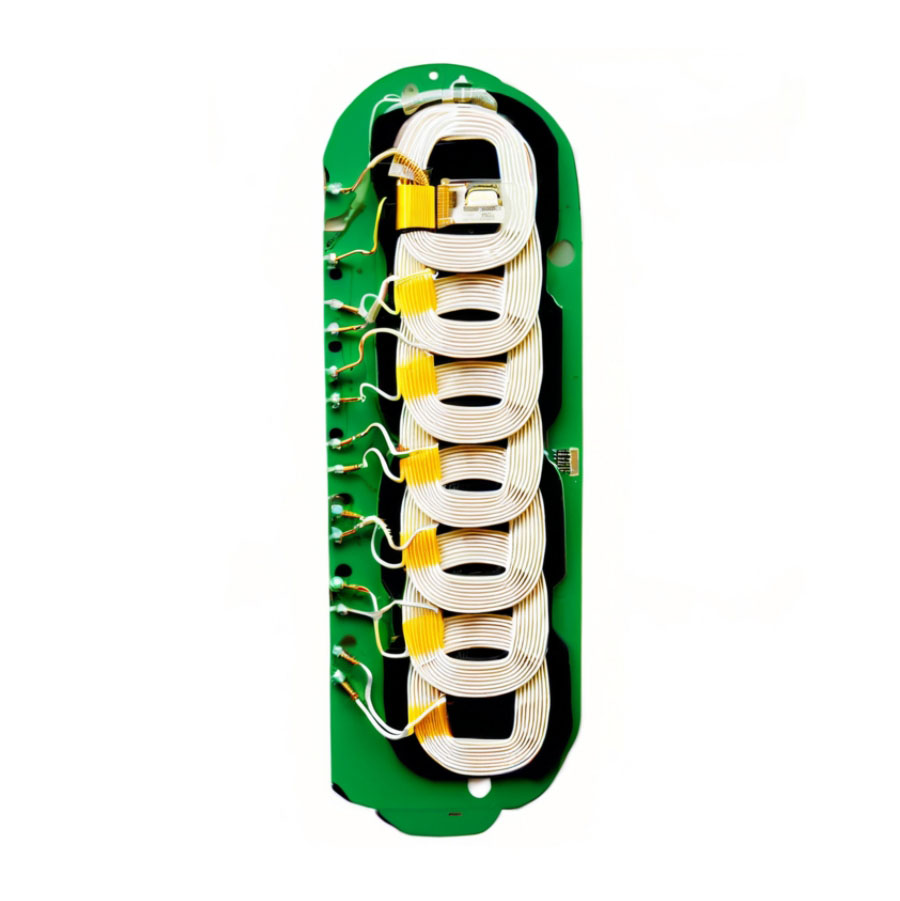

High Quality Professional Double-Sided PCB PCBA One Stop Print Circuit Board Consumer Board PCB Manufactured Producer

High Quality Professional Double-Sided PCB PCBA One Stop Print Circuit Board Consumer Board PCB Manufactured Producer

Get a Price/Quote

Product Details:

Voltage Endurance 2 kV
Test 100% E-test & AOI
Min. Line Spacing 0.1 mm
Board Type Rigid
Silkscreen White, both sides
Insulation Resistance >10^12
Min. Line Width 0.1 mm
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

High Quality Professional Double-Sided PCB PCBA One Stop Print Circuit Board Consumer Board PCB Manufactured Producer Price And Quantity

Minimum Order Quantity 1 Piece

Production Lead Time 5-15 Days
Maximum Board Size Up to 600mm x 1200mm
Soldermask Color Green (Other colors on request)
Packing ESD and Vacuum Packaging
Silkscreen Color White (Standard, other options available)
Component Placement Accuracy 0.05 mm
Surface Mount Technology (SMT) Capability Yes
Operating Temperature Range -40C to +85C
Design Format Support Gerber, ODB++, CAD
RoHS Compliance Yes
Application Consumer Electronics, Industrial Control
Minimum Board Size 10mm x 10mm
Assembly Service SMT & Through Hole

High Quality Professional Double-Sided PCB PCBA One Stop Print Circuit Board Consumer Board PCB Manufactured Producer Product Specifications

Electrical Components As per customer BOM
Hole Size Min 0.2 mm
Board Thickness 1.6 mm
Voltage Endurance 2 kV
Test 100% E-test & AOI
Base Material FR4
Min. Line Spacing 0.1 mm
Board Type Rigid
Surface Finish HASL, Lead-Free
Panel Size Custom as per design
Silkscreen White, both sides
Color Green
Number Of Layers 2
Copper Thickness 1 oz (35m)
Sensor Switch Not Included
Soldermask Green, standard
Min. Line Width 0.1 mm
Insulation Resistance >10^12
Product Type Double-Sided PCB PCBA
Impedance Controlled, on request
Flame Resistance Level 94V-0

Production Lead Time 5-15 Days
Maximum Board Size Up to 600mm x 1200mm
Soldermask Color Green (Other colors on request)
Packing ESD and Vacuum Packaging
Silkscreen Color White (Standard, other options available)
Component Placement Accuracy 0.05 mm
Surface Mount Technology (SMT) Capability Yes
Operating Temperature Range -40C to +85C
Design Format Support Gerber, ODB++, CAD
RoHS Compliance Yes
Application Consumer Electronics, Industrial Control
Minimum Board Size 10mm x 10mm
Assembly Service SMT & Through Hole
