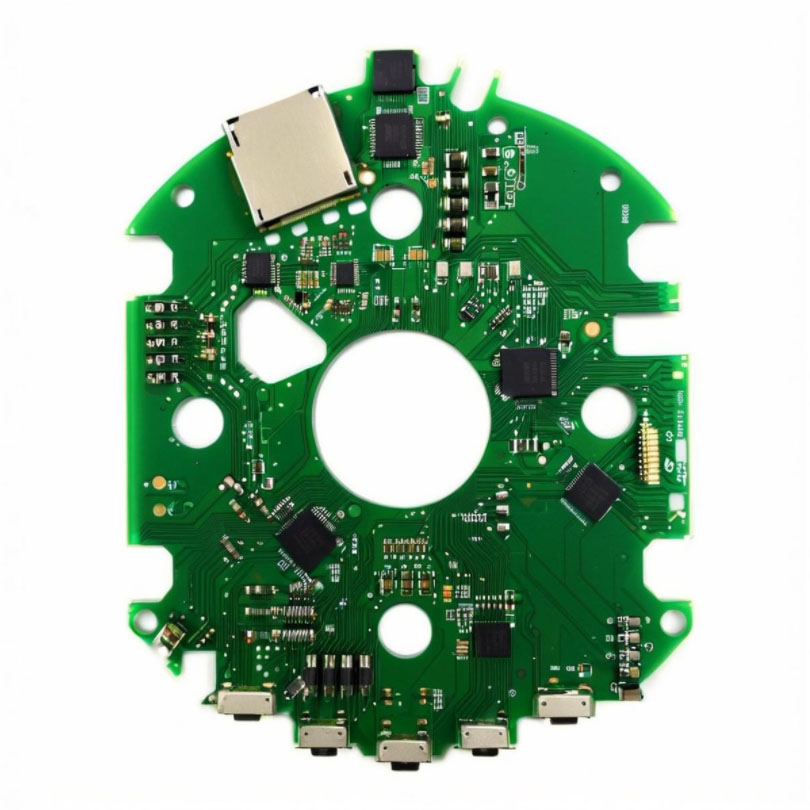

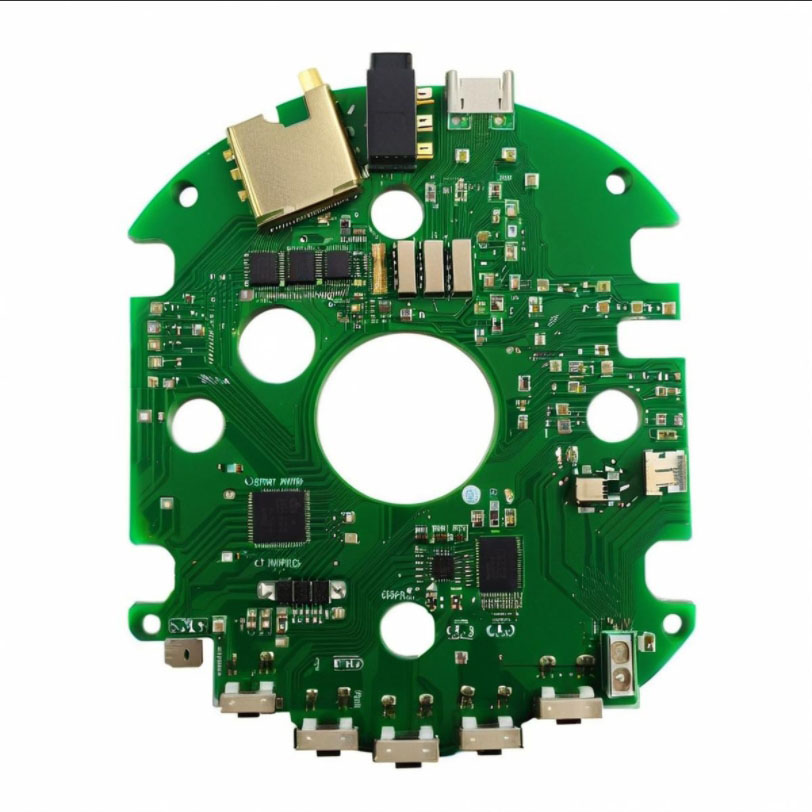

High Quality one stop Service Manufacturer Pcb Pcba Assembly With Shenzhen Pcba Design and Software Development

High Quality one stop Service Manufacturer Pcb Pcba Assembly With Shenzhen Pcba Design and Software Development

Get a Price/Quote

Product Details:

Flame Resistance Level UL94V-0
Test AOI, X-Ray, Functional Testing, ICT
Insulation Resistance >108
Voltage Endurance 1.5KV-3KV
Impedance 10%
Min. Line Width 0.1mm
Soldermask Green, Blue, Red, Black, White, Yellow
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

High Quality one stop Service Manufacturer Pcb Pcba Assembly With Shenzhen Pcba Design and Software Development Price And Quantity

Minimum Order Quantity 1
Price Or Price Range INR

Production Lead Time Prototyping: 3-7 Days, Mass Production: 7-21 Days
Assembly Type SMT, Through-Hole, Mixed Technology
After-Sales Service Technical Support and Failure Analysis
OEM/ODM Service Available
Min. Solder Mask Bridge 0.08mm
Packing Method ESD, Vacuum Sealed, Customized Carton
Component Procurement Full Turnkey / Partial Turnkey / Consigned
Operating Temperature -40C to +85C / Customizable
Quality System ISO9001, RoHS, CE, UL Certified
Assembly Capacity Up to 0201 components, BGA, QFN, POP, CSP
Shipping Methods DHL, FedEx, UPS, EMS, Air/Sea Freight
Traceability Barcode/QR code marking available
File Formats Supported Gerber, BOM, Centroid, CAD, Altium, Eagle, Protel, etc.
BGA Pitch Min. 0.3mm Pitch
Design Support PCB Design, Schematic Capture, Layout, Software Development

High Quality one stop Service Manufacturer Pcb Pcba Assembly With Shenzhen Pcba Design and Software Development Product Specifications

Min. Line Width 0.1mm
Impedance 10%
Copper Thickness 1oz (Standard, customizable)
Number Of Layers 1-32 Layers
Product Type High Quality One Stop Service PCB PCBA Assembly
Test AOI, X-Ray, Functional Testing, ICT
Board Type Single-sided, Double-sided, Multilayer, Rigid-Flex
Electrical Components As per BOM/Customer Request
Sensor Switch Optional, based on design requirements
Soldermask Green, Blue, Red, Black, White, Yellow
Flame Resistance Level UL94V-0
Surface Finish HASL, ENIG, OSP, Immersion Silver/Tin/Gold
Panel Size Customizable
Insulation Resistance >108
Hole Size Min. 0.2mm
Base Material FR-4, High TG, Rogers, Aluminum, CEM-1, CEM-3
Board Thickness 1.6mm (Standard, customizable)
Silkscreen White, Yellow, Black
Min. Line Spacing 0.1mm
Voltage Endurance 1.5KV-3KV

Production Lead Time Prototyping: 3-7 Days, Mass Production: 7-21 Days
Assembly Type SMT, Through-Hole, Mixed Technology
After-Sales Service Technical Support and Failure Analysis
OEM/ODM Service Available
Min. Solder Mask Bridge 0.08mm
Packing Method ESD, Vacuum Sealed, Customized Carton
Component Procurement Full Turnkey / Partial Turnkey / Consigned
Operating Temperature -40C to +85C / Customizable
Quality System ISO9001, RoHS, CE, UL Certified
Assembly Capacity Up to 0201 components, BGA, QFN, POP, CSP
Shipping Methods DHL, FedEx, UPS, EMS, Air/Sea Freight
Traceability Barcode/QR code marking available
File Formats Supported Gerber, BOM, Centroid, CAD, Altium, Eagle, Protel, etc.
BGA Pitch Min. 0.3mm Pitch
Design Support PCB Design, Schematic Capture, Layout, Software Development
