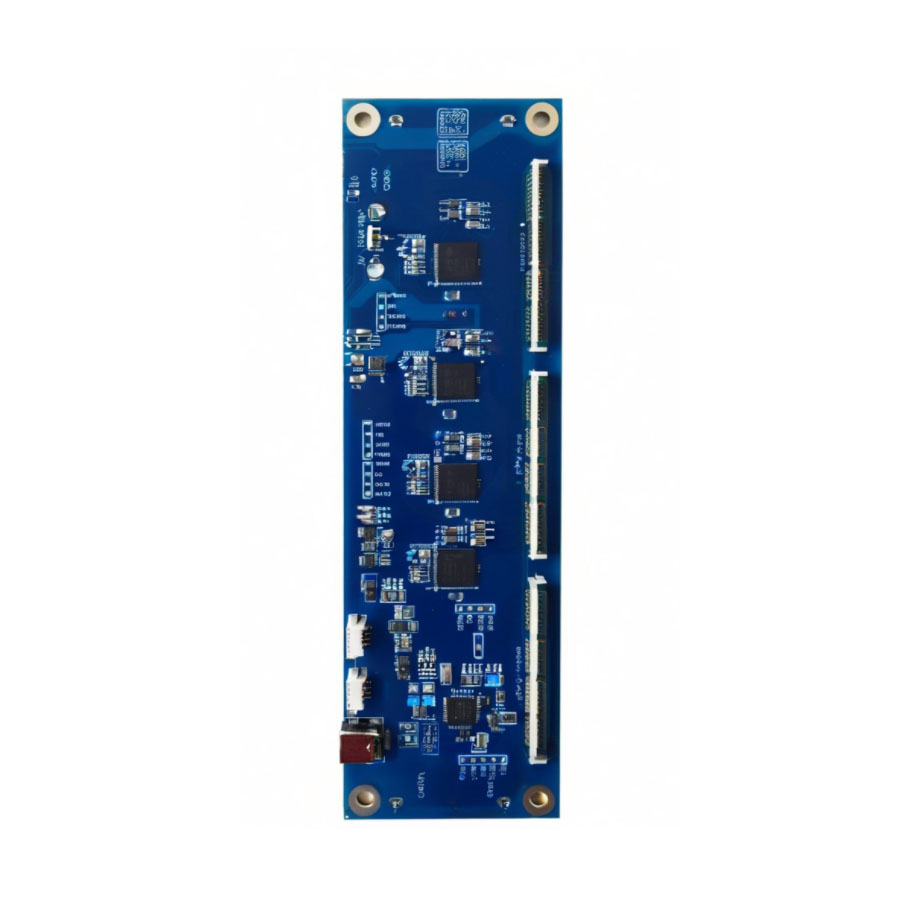

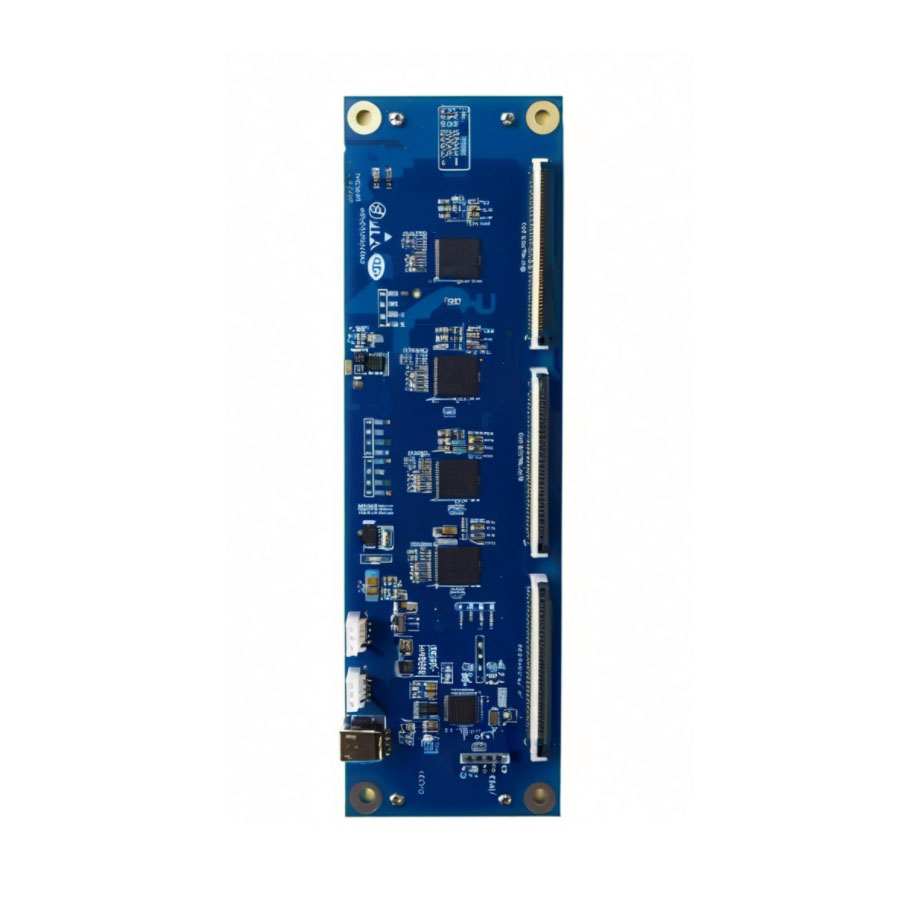

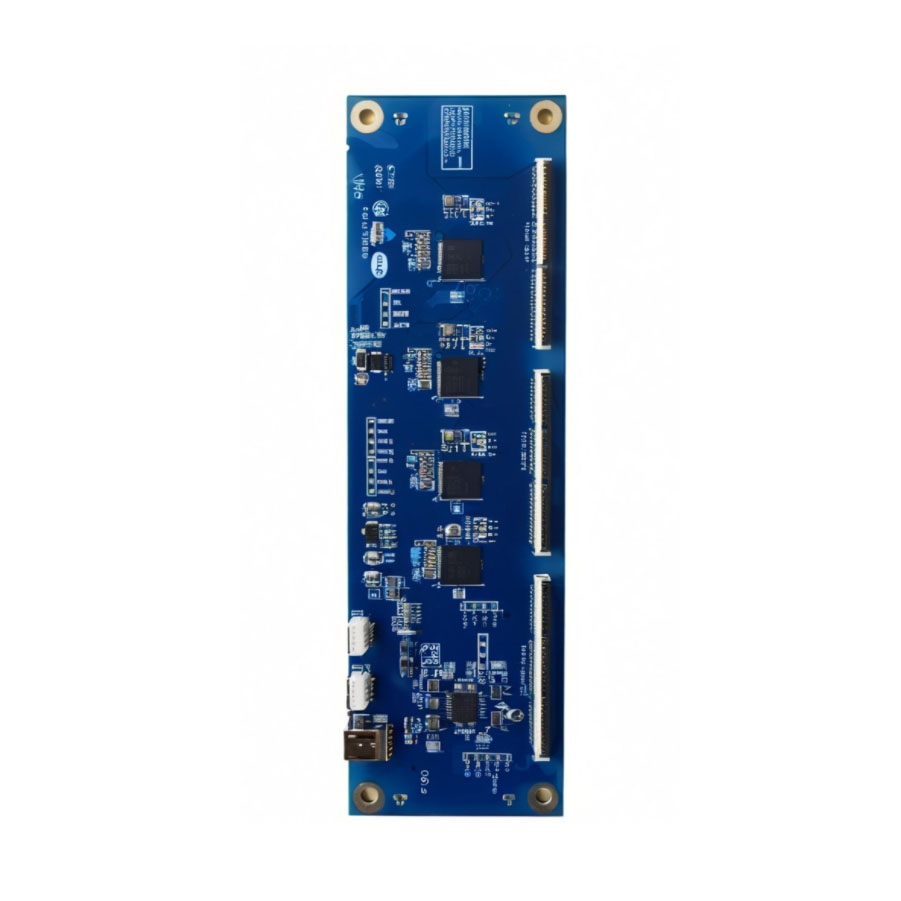

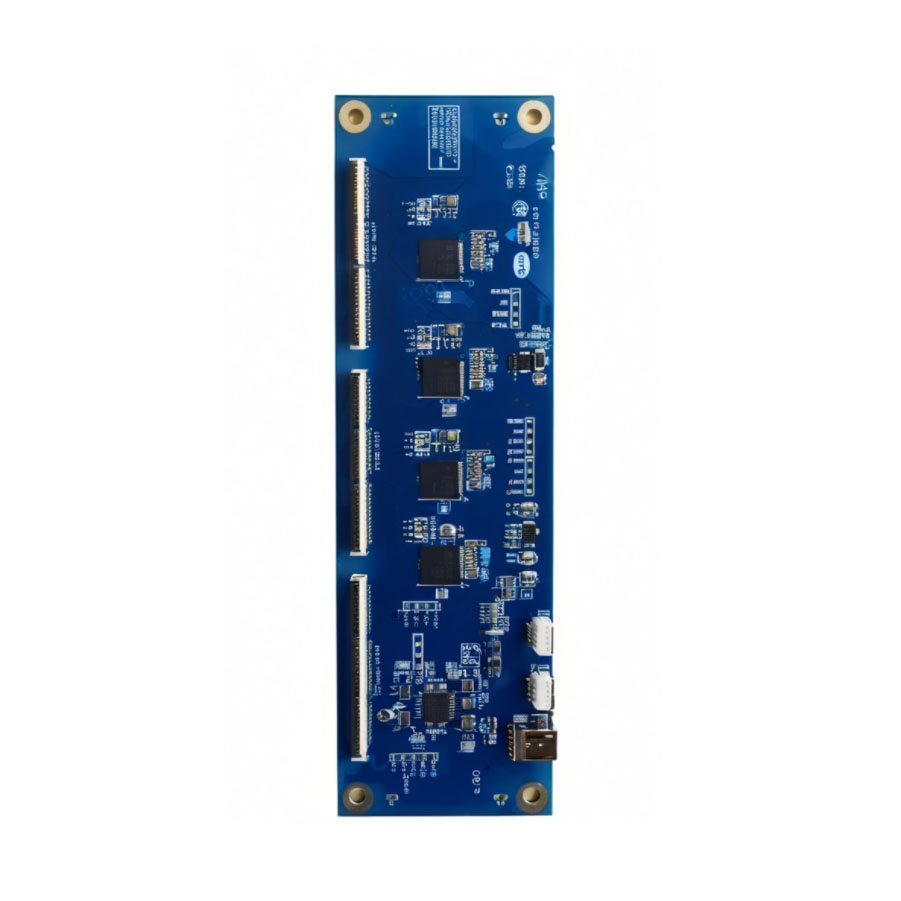

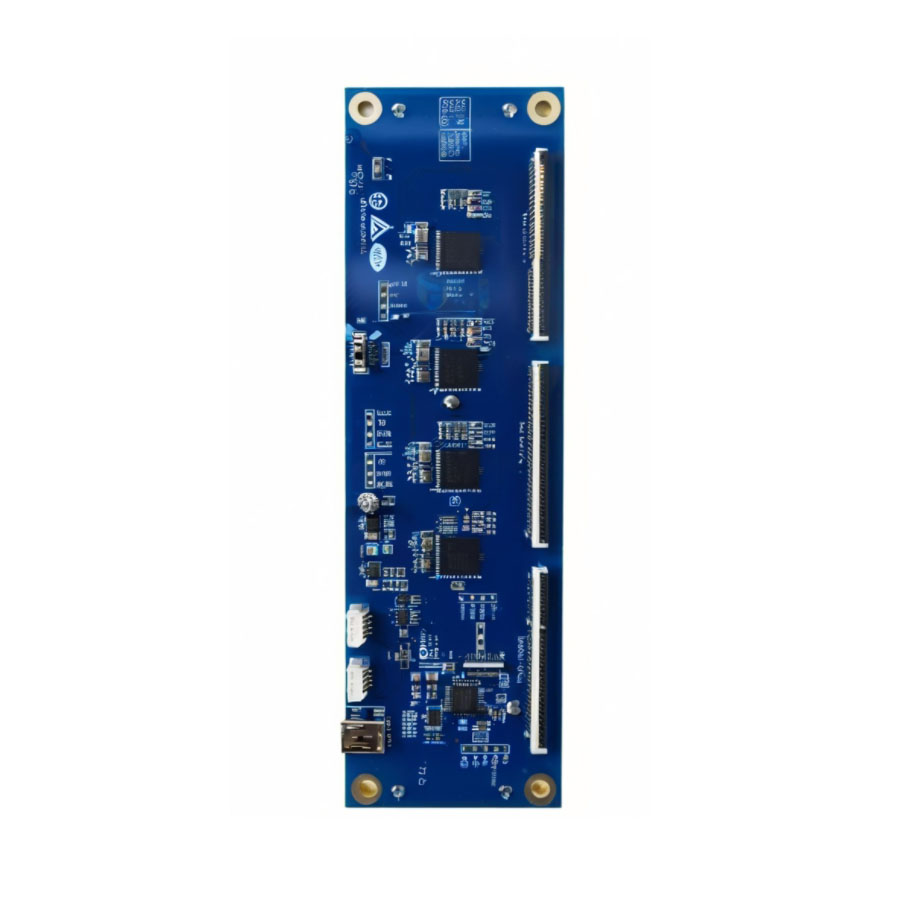

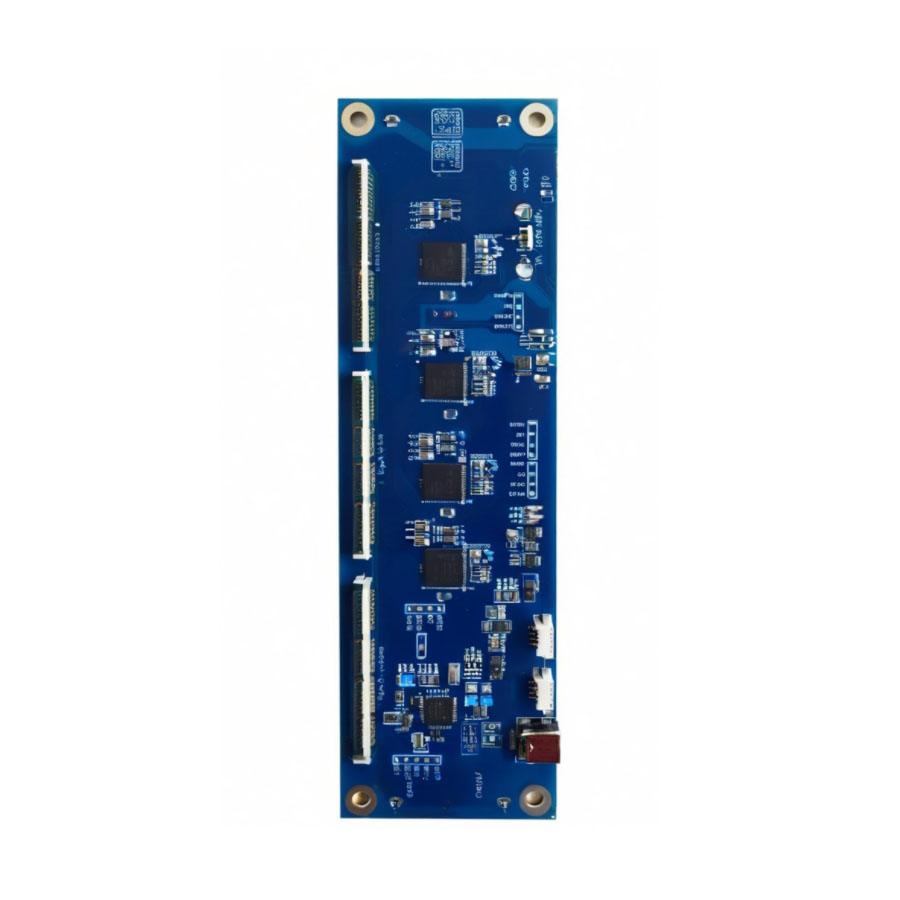

Electronics Pcba Assembly Manufacturer Shenzhen One stop Pcba Service Oem High Power Pcb Board Factory Supplier

Electronics Pcba Assembly Manufacturer Shenzhen One stop Pcba Service Oem High Power Pcb Board Factory Supplier

Get a Price/Quote

Product Details:

Min. Line Spacing 0.075mm
Test 100% E-test, AOI, X-ray
Board Type Rigid/Flexible/Rigid-Flex
Impedance Controlled Impedance Supported
Voltage Endurance 50V
Flame Resistance Level UL94V-0
Silkscreen White, Black, Yellow
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Electronics Pcba Assembly Manufacturer Shenzhen One stop Pcba Service Oem High Power Pcb Board Factory Supplier Price And Quantity

Minimum Order Quantity 1 Piece

Production Capacity 40,000m2/month
OEM/ODM Services Supported
Application Consumer Electronics, Industrial, Automotive, Medical, Telecom
Assembly Type SMT, THT, BGA, QFN, CSP
Lead Time Sample 3-7 Days, Mass 7-15 Days
Packing Vacuum Packing, Anti-Static Bags, Custom
Component Sourcing Full Turnkey/Partial Turnkey Services Available
Environmental Compliance RoHS, Reach

Electronics Pcba Assembly Manufacturer Shenzhen One stop Pcba Service Oem High Power Pcb Board Factory Supplier Product Specifications

Base Material FR4, High TG, Aluminum, Rogers
Insulation Resistance >10^12
Test 100% E-test, AOI, X-ray
Soldermask Green/Red/Black/Blue/Yellow/White
Board Thickness 0.8mm-3.0mm
Product Type Electronics PCBA Assembly
Sensor Switch Optional/Custom
Flame Resistance Level UL94V-0
Voltage Endurance 50V
Number Of Layers 1-32 Layers
Electrical Components SMT, Through Hole, DIP Components
Silkscreen White, Black, Yellow
Copper Thickness 1oz-4oz
Min. Line Spacing 0.075mm
Panel Size Customizable
Color Green/Blue/Black/Custom
Min. Line Width 0.075mm
Board Type Rigid/Flexible/Rigid-Flex
Surface Finish HASL, ENIG, OSP, Lead Free HASL
Hole Size 0.2mm (Min)
Impedance Controlled Impedance Supported

Production Capacity 40,000m2/month
OEM/ODM Services Supported
Application Consumer Electronics, Industrial, Automotive, Medical, Telecom
Assembly Type SMT, THT, BGA, QFN, CSP
Lead Time Sample 3-7 Days, Mass 7-15 Days
Packing Vacuum Packing, Anti-Static Bags, Custom
Component Sourcing Full Turnkey/Partial Turnkey Services Available
Environmental Compliance RoHS, Reach

Product Description

Experience sizzling innovation and rare quality with our sought-after Electronics PCBA Assembly Manufacturing services in Shenzhen. As a formidable OEM/ODM factory and supplier, we deliver triumphant results through full or partial turnkey assembly, component sourcing, and a wide array of board types. Offering production capacity of up to 40,000m2/month, advanced assembly (SMT, THT, BGA, QFN, CSP), and rapid sample and mass production lead times, we cater to consumer, industrial, automotive, medical, and telecom applications. Redeem peace of mind with RoHS, Reach, and UL compliance while enjoying custom options in panel size, finish, and color.

Unmatched Advantages & Versatile Applications

Choose Electronics PCBA Assembly Manufacturer Shenzhen for a triumphant synergy of competitive advantages: robust assembly capabilities, rare material features, and a formidable surface application range. From rigid-flex to high power PCBs crafted from FR4, Aluminum, and Rogers, our solutions are sought-after in consumer electronics, telecommunications, automotive, and medical industries. Each custom board offers controlled impedance, high flame resistance, and pristine finishes, ensuring optimal performance and complete environmental compliance.

Dynamic Domestic Market & Powerful Supply Chain

Conquering the domestic market with sizzling efficiency, we charge ahead by dispatching high-quality products across India and abroad. Our supply ability reaches an incredible 40,000 square meters monthly, reinforced by formidable stock and exchange systems. Each board is carefully packaged using vacuum and anti-static methods, ensuring safe arrival. For special requirements, custom packing can be redeemed. Trust us for quick turnaround and secure delivery of your most sought-after PCBA solutions.

FAQ's of Electronics Pcba Assembly Manufacturer Shenzhen One stop Pcba Service Oem High Power Pcb Board Factory Supplier:

Q: How does the PCBA assembly process ensure premium quality?

A: We employ a controlled and stringent process flow, including SMT, THT, BGA, and DIP assembly, supported by 100% E-test, AOI, X-ray inspection, and robust quality systems, resulting in reliable and consistent high-performance boards.

Q: What materials and finishes are available for custom PCB orders?

A: We offer a rare selection of materials-FR4, High TG, Aluminum, Rogers-and surface finishes such as HASL, ENIG, OSP, and Lead-Free HASL to meet varied industrial needs and ensure environmental compliance.

Q: When can I expect sample or mass production boards to be dispatched?

A: Samples can be dispatched within 3-7 days, while mass production charges ahead with lead times of 7-15 days, depending on order specifications and requirements.

Q: Where are your PCBA solutions typically used?

A: Our boards are triumphant in diverse application surfaces including consumer electronics, industrial controls, automotive systems, medical devices, and telecom infrastructure, thanks to our steadfast assembly and versatile materials.

Q: What are the key benefits of choosing your full turnkey PCBA service?

A: Our full turnkey service handles component sourcing, assembly, inspection, and final packaging, redeeming your time and investment by delivering a sought-after, hassle-free, and high-quality PCBA solution tailored to your requirements.
