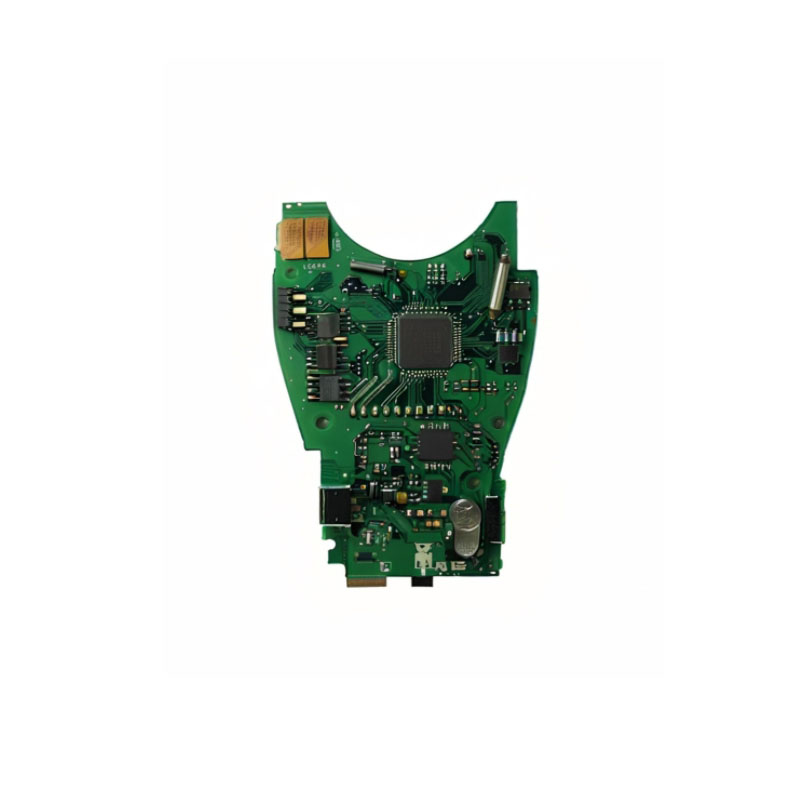

Electric Bldc Fan Controller Pcb pcba Board With Short Circuit Protection One stop manufacturer

Electric Bldc Fan Controller Pcb pcba Board With Short Circuit Protection One stop manufacturer

Get a Price/Quote

Product Details:

Soldermask Green
Test 100% Electrical Test/ Functional Test
Impedance Controlled Impedance (as per customer design)
Min. Line Width 0.1 mm
Voltage Endurance 1500V
Hole Size 0.3 mm (minimum)
Min. Line Spacing 0.1 mm
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Electric Bldc Fan Controller Pcb pcba Board With Short Circuit Protection One stop manufacturer Price And Quantity

Minimum Order Quantity 1 Piece
Price Or Price Range INR

RoHS Compliance Yes
Rated Current Up to 2A
Connector Type Screw Terminal and Pin Header
Operating Temperature Range -20C to +85C
Short Circuit Protection Supported
MOQ 1 piece (prototype) or as per customer requirement
OEM/ODM Service Available
PCB Shape Customizable
Rated Voltage 220V AC
Input Type AC Mains
Functionality BLDC Fan Speed Regulation, Over Voltage/Current Protection, Over Temperature Protection
Assembly Type One-Stop Turnkey Solution
Mounting Type SMD and Through Hole Mixed

Electric Bldc Fan Controller Pcb pcba Board With Short Circuit Protection One stop manufacturer Product Specifications

Impedance Controlled Impedance (as per customer design)
Silkscreen White, both sides
Min. Line Width 0.1 mm
Test 100% Electrical Test/ Functional Test
Min. Line Spacing 0.1 mm
Hole Size 0.3 mm (minimum)
Base Material FR4
Soldermask Green
Panel Size Customized
Product Type Electric BLDC Fan Controller PCB PCBA Board
Sensor Switch Compatible (optional integration)
Copper Thickness 1 oz
Insulation Resistance >10^12
Number Of Layers 2 Layers
Voltage Endurance 1500V
Flame Resistance Level UL94 V-0
Board Thickness 1.6 mm
Color Green
Electrical Components Integrated (resistors, capacitors, ICs, MOSFETs, connectors, etc.)
Board Type Rigid
Surface Finish HASL (Lead-Free)

RoHS Compliance Yes
Rated Current Up to 2A
Connector Type Screw Terminal and Pin Header
Operating Temperature Range -20C to +85C
Short Circuit Protection Supported
MOQ 1 piece (prototype) or as per customer requirement
OEM/ODM Service Available
PCB Shape Customizable
Rated Voltage 220V AC
Input Type AC Mains
Functionality BLDC Fan Speed Regulation, Over Voltage/Current Protection, Over Temperature Protection
Assembly Type One-Stop Turnkey Solution
Mounting Type SMD and Through Hole Mixed

Product Description
