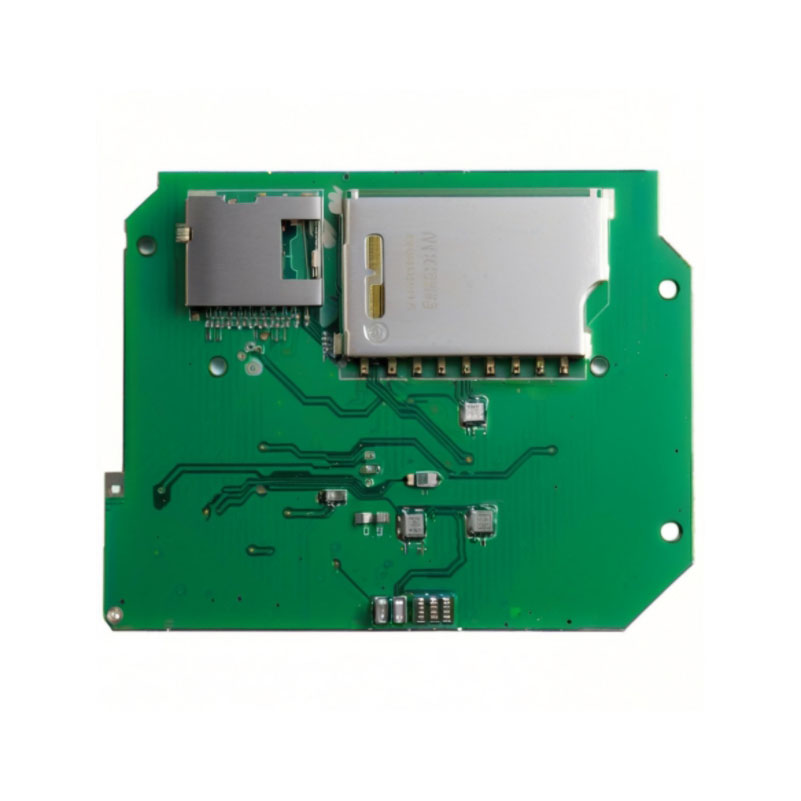

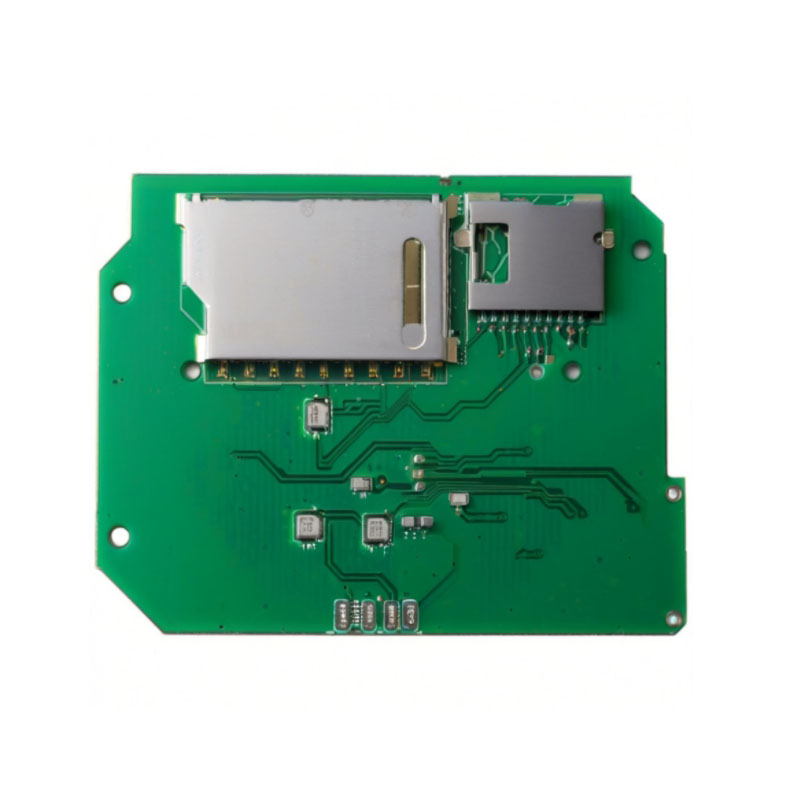

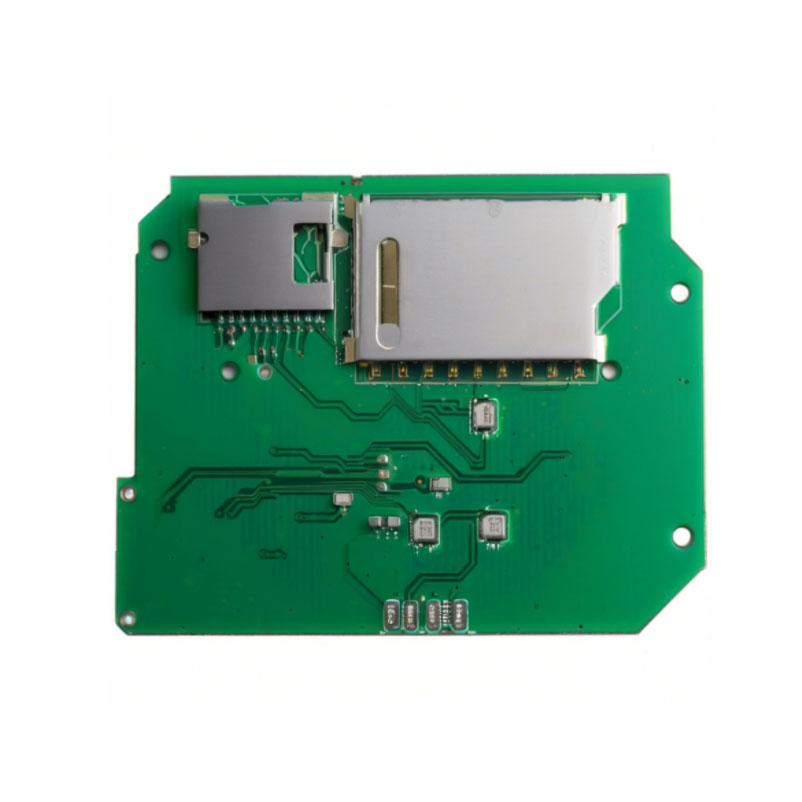

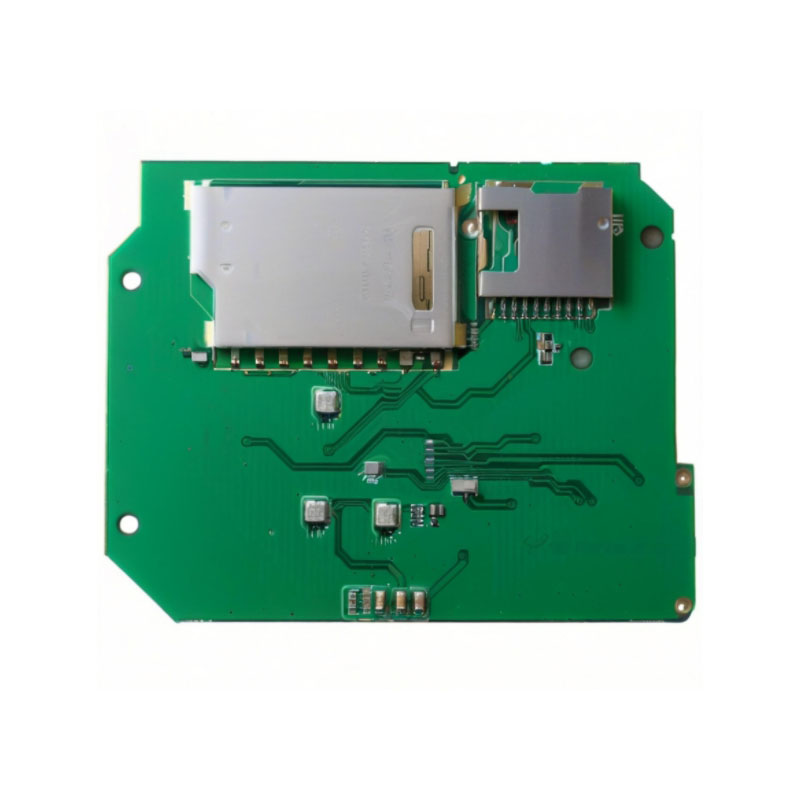

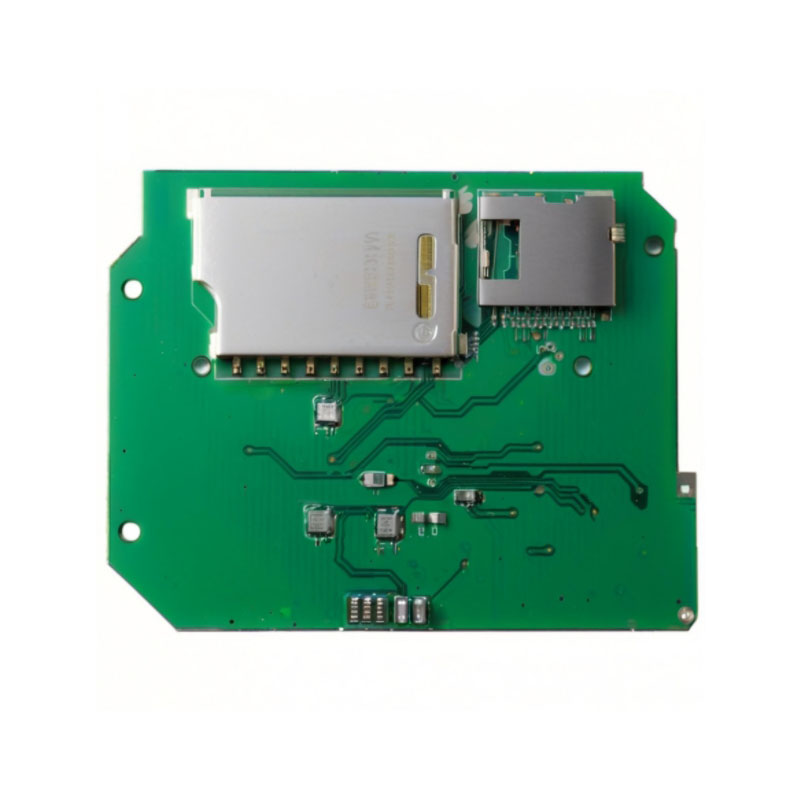

Advanced Multilayer PCBA Manufacturer for Electric Vehicle Powertrain Systems

Advanced Multilayer PCBA Manufacturer for Electric Vehicle Powertrain Systems

Get a Price/Quote

Product Details:

Board Type Rigid, Multilayer
Soldermask Green, High Reliability
Voltage Endurance 2500V AC / 60s
Min. Line Spacing 0.1 mm
Test E-Test and AOI (Automated Optical Inspection)
Insulation Resistance >10^12
Silkscreen White, Both Sides
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Advanced Multilayer PCBA Manufacturer for Electric Vehicle Powertrain Systems Price And Quantity

Price Or Price Range INR
Minimum Order Quantity 1 Piece

Application Electric Vehicle Powertrain & Inverter Systems
Operating Temperature Range -40C to +125C
Package Type ESD & Vacuum Sealed
Production Capacity Up to 20,000 Sq.m/month
Acceptable File Formats Gerber, ODB++, Altium
Mounting Type SMT, DIP
Lead Time 7-21 days (based on order)
Moisture Sensitivity Level MSL 1 - 3
Connector Type Customizable, High Power Rated

Advanced Multilayer PCBA Manufacturer for Electric Vehicle Powertrain Systems Product Specifications

Silkscreen White, Both Sides
Surface Finish ENIG, OSP, HASL
Min. Line Width 0.1 mm
Impedance Controlled, 5%
Sensor Switch Integrated, Customizable Options
Panel Size Customized (up to 600 mm x 400 mm)
Board Thickness 1.6 mm - 2.4 mm
Electrical Components Full SMT & Through-Hole Assembly
Copper Thickness 1 oz - 3 oz
Hole Size Min. 0.2 mm
Number Of Layers 4-20 Layers
Base Material High TG FR4, Polyimide
Board Type Rigid, Multilayer
Voltage Endurance 2500V AC / 60s
Soldermask Green, High Reliability
Color Green
Product Type Advanced Multilayer PCBA for EV Powertrain Systems
Insulation Resistance >10^12
Flame Resistance Level UL 94V-0
Test E-Test and AOI (Automated Optical Inspection)
Min. Line Spacing 0.1 mm

Application Electric Vehicle Powertrain & Inverter Systems
Operating Temperature Range -40C to +125C
Package Type ESD & Vacuum Sealed
Production Capacity Up to 20,000 Sq.m/month
Acceptable File Formats Gerber, ODB++, Altium
Mounting Type SMT, DIP
Lead Time 7-21 days (based on order)
Moisture Sensitivity Level MSL 1 - 3
Connector Type Customizable, High Power Rated

Product Description

Experience the brilliance and reliability of our Advanced Multilayer PCBA manufacturer, acclaimed with favorable reviews and recognized as a top-rated exporter and supplier in India. Specially engineered for electric vehicle powertrain and inverter systems, our splendid PCBA solutions deliver high performance in harsh operating conditions (-40C to +125C). High power rating, top-tier customization, and full SMT & through-hole assembly ensure compatibility with your unique requirements. Enjoy rapid lead times, excellent moisture sensitivity levels, and impeccable quality backed by E-Test and AOI. Your one-stop solution for superior electric vehicle PCBA needs.

Distinctive Features and Versatile Application Areas

Our advanced multilayer PCBA boasts extra features including high copper thickness, integrated sensor switches, and a customizable connector system. Special highlights involve high power ratings, controlled impedance, ESD and vacuum packaging, and up to 20,000 sq.m monthly production. These splendid boards are well-suited for electric vehicle powertrain and inverter systems, offering superior insulation resistance, voltage endurance, and flame resistance, making them the preferred choice for advanced, reliable automotive electronics.

Certifications, Swift Delivery, and Purchase Process

These top-tier PCBA solutions are certified with UL 94V-0 flame resistance and provide exceptional voltage and insulation performance. Domestic market and export buyers can submit prudent purchase orders, resulting in efficient expenditure and streamlined supply. Delivery times range from 7 to 21 days, depending on order specifications. All shipments leave through major FOB ports in India for optimal logistics. Our trusted process ensures prompt, error-free delivery to meet your application needs.

FAQ's of Advanced Multilayer PCBA Manufacturer for Electric Vehicle Powertrain Systems:

Q: How does the advanced multilayer PCBA benefit electric vehicle powertrain systems?

A: Our multilayer PCBA provides outstanding thermal stability, high reliability, and resistance to harsh conditions, ensuring longevity and performance in demanding EV powertrain and inverter environments.

Q: What customization options are available for connectors and board specifications?

A: Connector systems, panel sizes, and sensor switches are fully customizable. We can accommodate various copper thicknesses, board dimensions, layer counts, and mounting types to match unique client and application requirements.

Q: When can I expect delivery after placing a purchase order?

A: Depending on your order complexity and volume, delivery typically takes between 7 to 21 days after the purchase order is finalized and accepted.

Q: Where are your products manufactured and shipped from?

A: All PCBA solutions are manufactured in India at our advanced facilities and shipped globally via major FOB ports, ensuring prompt and safe delivery to domestic and international markets.

Q: What is the process for submitting design files and initiating production?

A: Clients can submit design files in Gerber, ODB++, or Altium formats. Our technical team reviews the submission, confirms specifications, and provides a quote before initiating the high-precision production process.
