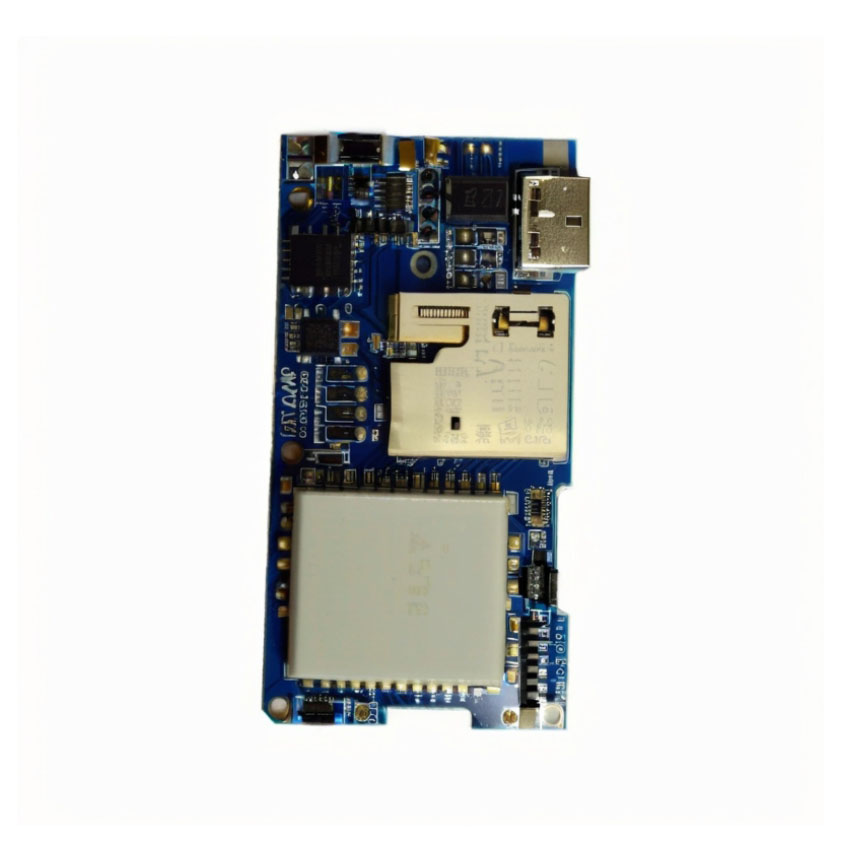

1-4 Layer Soft Flexible Printed Circuit Board Assembly (PCBA)

Get a Price/Quote

Product Details:

Insulation Resistance >10^12 Ohm
Voltage Endurance 220-440 Volt (V)
Silkscreen White, both sides (optional)
Soldermask Green, polyimide compatible
Board Type Soft Flexible PCB
Test 100% Electrical Test, Automated Optical Inspection (AOI)
Flame Resistance Level UL94V-0
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

1-4 Layer Soft Flexible Printed Circuit Board Assembly (PCBA) Price And Quantity

Minimum Order Quantity 100 Piece

Operating Temperature -40°C to +150°C
RoHS Compliance Yes
Packaging ESD Anti-static packing
Assembly Type SMT, DIP, Mixed Technology
Storage Condition Humidity <60%, Temp 23±2°C
Application Consumer electronics, automotive, medical devices, industrial controls
Connector Type ZIF, FFC, customized as per design
Flexural Endurance Over 100,000 cycles
Lead Time 7-15 Days (prototyping or bulk, on request)

1-4 Layer Soft Flexible Printed Circuit Board Assembly (PCBA) Product Specifications

Board Thickness Different available Millimeter (mm)
Insulation Resistance >10^12 Ohm
Product Type Printed Circuit Board Assembly Electronic PCBA
Base Material Polyimide, PET Film
Number Of Layers 1-4 Layers
Copper Thickness 1 oz 3 oz (customizable)
Surface Finish ENIG (Electroless Nickel/Immersion Gold), OSP, Lead-Free HASL
Electrical Components High-Density SMD, Through-Hole, custom per design
Board Type Soft Flexible PCB
Soldermask Green, polyimide compatible
Color Green
Voltage Endurance 220-440 Volt (V)
Silkscreen White, both sides (optional)
Sensor Switch Optional or customized
Panel Size Up to 600mm x 1200mm (custom sizes available)
Hole Size Min. 0.10mm
Warranty Yes
Test 100% Electrical Test, Automated Optical Inspection (AOI)
Flame Resistance Level UL94V-0
Min. Line Spacing 0.06mm
Min. Line Width 0.06mm
Impedance Controlled Impedance (10%)

Operating Temperature -40°C to +150°C
RoHS Compliance Yes
Packaging ESD Anti-static packing
Assembly Type SMT, DIP, Mixed Technology
Storage Condition Humidity <60%, Temp 23±2°C
Application Consumer electronics, automotive, medical devices, industrial controls
Connector Type ZIF, FFC, customized as per design
Flexural Endurance Over 100,000 cycles
Lead Time 7-15 Days (prototyping or bulk, on request)

1-4 Layer Soft Flexible Printed Circuit Board Assembly (PCBA) Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 7 Days
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Product Description

Discover our matchless 1-4 Layer Soft Flexible Printed Circuit Board Assembly (PCBA), designed for wondrous endurance and reliability in demanding settings. Utilise this special deal to equip your projects with first-string features like flexural endurance over 100,000 cycles and a wide operating temperature (-40C to +150C). Enjoy bespoke customization, RoHS compliance, and high-density SMT, DIP, or mixed component assembly. Benefit from rapid lead times (7-15 days), ESD anti-static packaging, and robust voltage endurance-essential for automotive, medical, consumer electronics, and industrial controls. Secure this offer from a Vietnam-based manufacturer and exporter today!

Premium Features & Versatile Applications

This 1-4 Layer Soft Flexible PCBA stands out with controlled impedance (10%) and high flexural endurance. Direction of use is straightforward: the board readily fits ZIF, FFC, or custom connectors-ideal for tight, dynamic spaces in consumer electronics, automotive, medical devices, or industrial controls. Additional highlights include customizable size, silkscreen options, and matchless electrical testing. Experience dependable performance thanks to polyimide or PET base materials and UL94V-0 flame resistance, all in a green RoHS-compliant design.

Certifications, Quick Delivery & Market Presence

Our Soft Flexible PCBA comes with RoHS and UL94V-0 certifications, assuring trustworthy operation. Benefit from quick dispatch and fast arrival, with prototyping or bulk orders delivered in 7-15 days. Payments are securely accepted in agreed terms, catering to global and domestic markets-especially in Vietnam. Rely on easy exchange or service support under warranty, ensuring continual peace of mind for all your specialized electronic applications.

FAQ's of 1-4 Layer Soft Flexible Printed Circuit Board Assembly (PCBA):

Q: How can I customize the 1-4 Layer Soft Flexible PCBA for my application?

A: You can specify your required layer count, board thickness, copper weight, panel size, component layout, and connector type (ZIF, FFC, or custom) during ordering. Our team will tailor the PCBA precisely to your design.

Q: What types of electronic components can be assembled on this flexible board?

A: We support high-density SMD, through-hole, or mixed technology assembly. Component arrangement and types are fully customizable to suit your project's unique requirements.

Q: When will my PCBA order be dispatched and how soon will it arrive?

A: Prototyping and bulk orders typically ship within 7-15 days after confirmation. We ensure swift dispatch and shipment tracking for fast and reliable arrival at your destination.

Q: Where can these Soft Flexible PCBAs be effectively used?

A: These PCBAs are superb for consumer electronics, automobile systems, medical instruments, and industrial controls-anywhere compact, flexible, and reliable connections are needed.

Q: What certifications and quality assurance processes are provided?

A: Our PCBAs are RoHS and UL94V-0 certified, ensuring safety and environmental compliance. Every board undergoes 100% electrical and AOI testing, ensuring optimal reliability.

Q: How do I benefit from the warranty and exchange policy?

A: You receive comprehensive warranty coverage, with straightforward product exchange or support in case of any manufacturing issues, ensuring lasting performance and peace of mind.
